SKU: SLC2.1/4-RHP

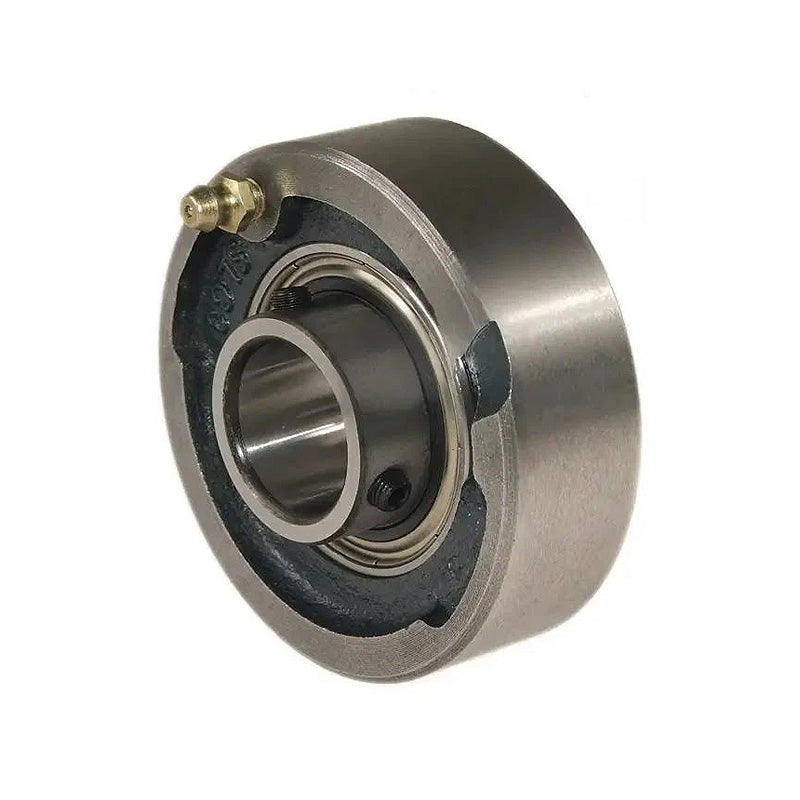

RHP SLC2-1/4 Cast Iron Cartridge Unit with 2-1/4 inch Bore Insert 149.25mm Outside Diameter
RHP SLC2-1/4 Cast Iron Cartridge Unit with 2-1/4 inch Bore Insert 149.25mm Outside Diameter
Regular price
Rs. 19,791.08
ex VAT
Regular price
Sale price
Rs. 19,791.08
ex VAT
In stock
Price Break
10+
Rs. 17,614.06
19+
Rs. 16,624.51
29+
Rs. 16,426.60
39+
Rs. 16,228.69
49+
Rs. 16,030.77
74+
Rs. 15,832.86
99+
Rs. 14,843.31
199+
Rs. 14,645.40
249+
Rs. 14,447.49
499+
Rs. 14,249.58
999+
Rs. 13,853.76
Couldn't load pickup availability
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 149.25mm
- Style:
- SLC
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 5.876 inch |
| A | 1.625 inch |
| A1 | 2.374 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
