SKU: SLC2.1/2-RHP

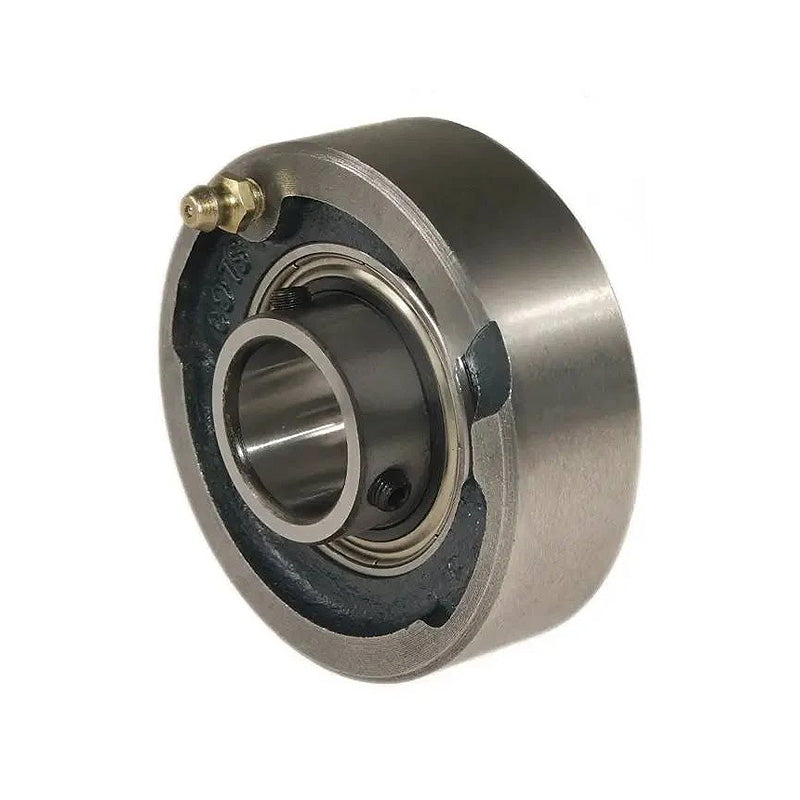

RHP SLC2-1/2 Cast Iron Cartridge Unit with 2-1/2 inch Bore Insert 149.25mm Outside Diameter
RHP SLC2-1/2 Cast Iron Cartridge Unit with 2-1/2 inch Bore Insert 149.25mm Outside Diameter
Regular price
Rs. 28,156.83
ex VAT
Regular price
Sale price
Rs. 28,156.83
ex VAT
In stock
Price Break
10+
Rs. 25,059.58
19+
Rs. 23,651.74
29+
Rs. 23,370.17
39+
Rs. 23,088.60
49+
Rs. 22,807.03
74+
Rs. 22,525.46
99+
Rs. 21,117.62
199+
Rs. 20,836.05
249+
Rs. 20,554.49
499+
Rs. 20,272.92
999+
Rs. 19,709.78
Couldn't load pickup availability
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 149.25mm
- Style:
- SLC
Technical
Technical
| Bore | 2-1/2 inch |
|---|---|
| L | 5.876 inch |
| A | 1.625 inch |
| A1 | 2.374 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| d1 | 3.244 inch |
| Dynamic load Cr | 57500 N |
| Static load Cor | 40000 N |
| Rec max speed | 2600 rpm |
| Weight | 4.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1065-2-1/2G+insonly">1065-2-1/2G Click Here</a> |
| Casting group | 10/65 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
