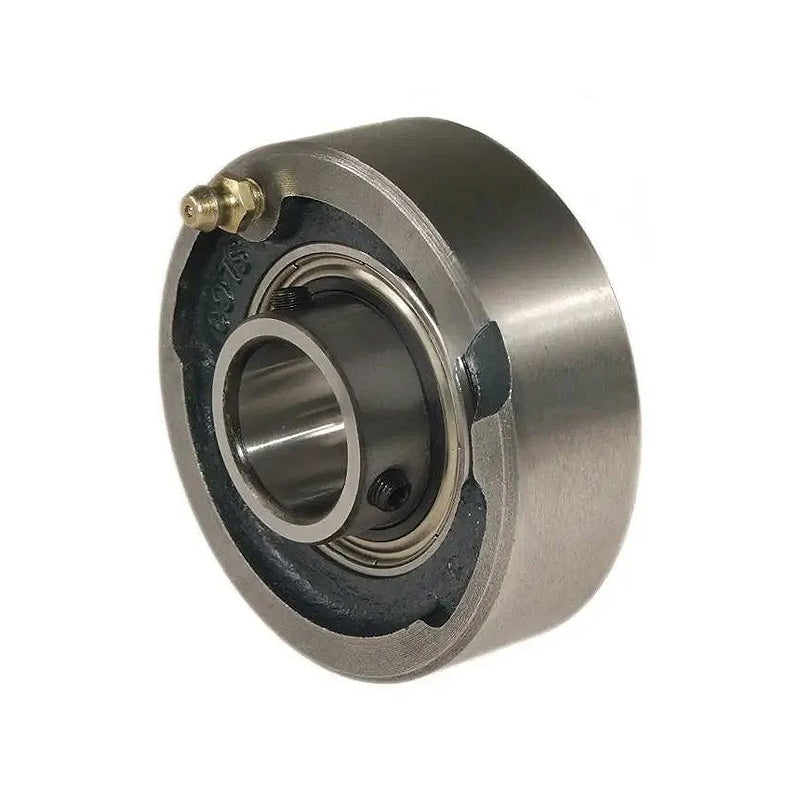

RHP SLC1A Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
RHP SLC1A Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
Regular price
Rs. 1,658.97
ex VAT
Regular price
Sale price
Rs. 1,658.97
ex VAT
In stock
Price Break
10+
Rs. 1,476.48
19+
Rs. 1,393.53
29+
Rs. 1,376.95
39+
Rs. 1,360.36
49+
Rs. 1,343.77
74+
Rs. 1,327.18
99+
Rs. 1,244.23
199+
Rs. 1,227.64
249+
Rs. 1,211.05
499+
Rs. 1,194.46
999+
Rs. 1,161.28
Couldn't load pickup availability
Description
Description
|
RHP SLC A Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 79.4mm
- Style:
- SLC
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.126 inch |
| A | 1.031 inch |
| A1 | 1.297 inch |
| A2 | 1.438 inch |
| A3 | 1.577 inch |
| B | 1.343 inch |
| B1 | 1077 inch |
| B2 | 1.217 inch |
| B3 | 1.748 inch |
| s | 0.564 inch |
| s1 | 0.298 inch |
| s2 | 0.689 inch |
| d1 | 1.339 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1AG+insonly">1225-1AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
