SKU: SLC1-RHP

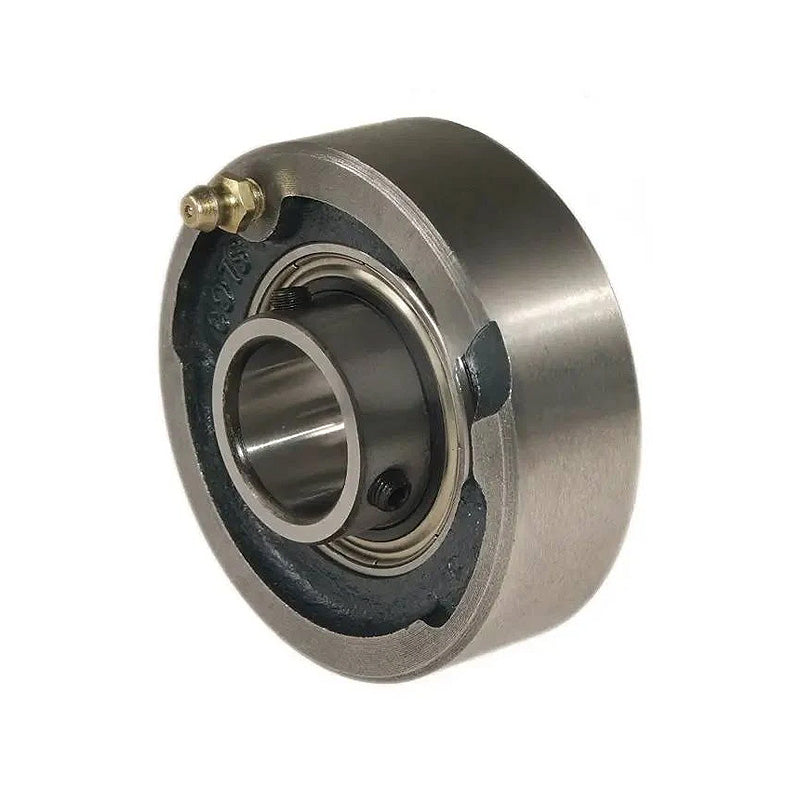

RHP SLC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
RHP SLC1 Cast Iron Cartridge Unit with 1 inch Bore Insert 79.4mm Outside Diameter
Regular price
Rs. 5,171.96
Regular price
Sale price
Rs. 5,171.96
Taxes included.
In stock
Price Break
10+
Rs. 4,603.04
19+
Rs. 4,344.45
29+
Rs. 4,292.73
39+
Rs. 4,241.01
49+
Rs. 4,189.29
74+
Rs. 4,137.57
99+
Rs. 3,878.97
199+
Rs. 3,827.25
249+
Rs. 3,775.53
499+
Rs. 3,723.81
999+
Rs. 3,620.37
Description
Description
|
RHP SLC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 79.4mm
- Style:
- SLC

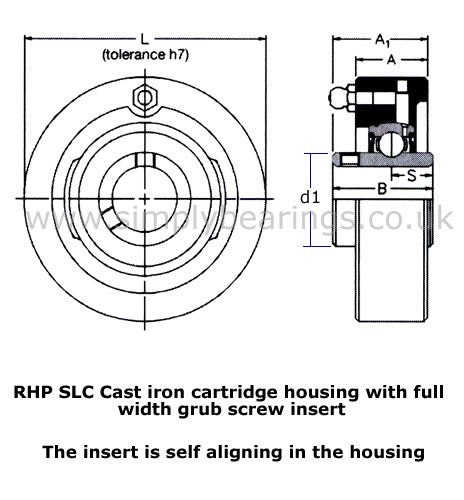

Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.126 inch |
| A | 1.031 inch |
| A1 | 1.297 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-1G+insonly">1025-1G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
