SKU: SLC1.11/16EC-RHP

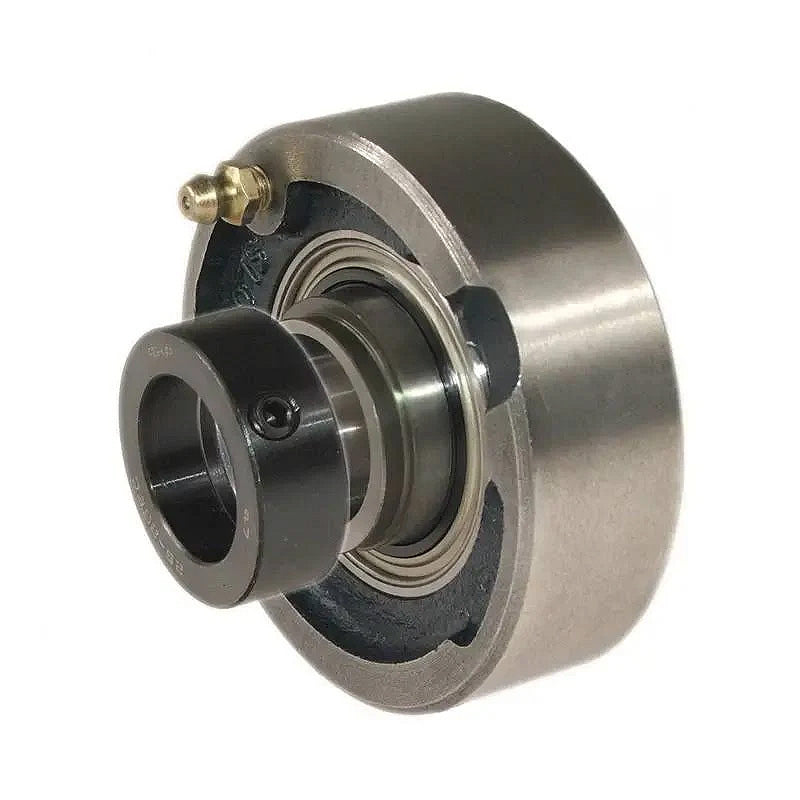

RHP SLC1-11/16EC Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
RHP SLC1-11/16EC Cast Iron Cartridge Unit with 1-11/16 inch Bore Insert 111.15mm Outside Diameter
Regular price
Rs. 10,697.16
ex VAT
Regular price
Sale price
Rs. 10,697.16
ex VAT
In stock
Price Break
10+
Rs. 9,520.47
19+
Rs. 8,985.61
29+
Rs. 8,878.64
39+
Rs. 8,771.67
49+
Rs. 8,664.70
74+
Rs. 8,557.73
99+
Rs. 8,022.87
199+
Rs. 7,915.90
249+
Rs. 7,808.93
499+
Rs. 7,701.96
999+
Rs. 7,488.01
Couldn't load pickup availability
Description
Description
|
RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Outside Diameter:
- 111.15mm
- Style:
- SLC
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 4.376 inch |
| A | 1.437 inch |
| A2 | 2.003 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-1-11/16ECG+insonly">1245-1-11/16ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
