• RHP SLC1-1/2EC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter - Allow 2-3 Days
1 1

SKU: SLC1.1/2EC-RHP

RHP SLC1-1/2EC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter - Allow 2-3 Days

RHP SLC1-1/2EC Cast Iron Cartridge Unit with 1-1/2 inch Bore Insert 106.39mm Outside Diameter - Allow 2-3 Days
Rs. 12,760.91
Rs. 12,760.91
Sale Sold out
Taxes included.

In stock

Price Break
5+ Rs. 12,633.30
10+ Rs. 12,122.86
20+ Rs. 11,867.65
50+ Rs. 11,484.82
100+ Rs. 11,229.60
500+ Rs. 10,591.56
1000+ Rs. 8,932.64
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

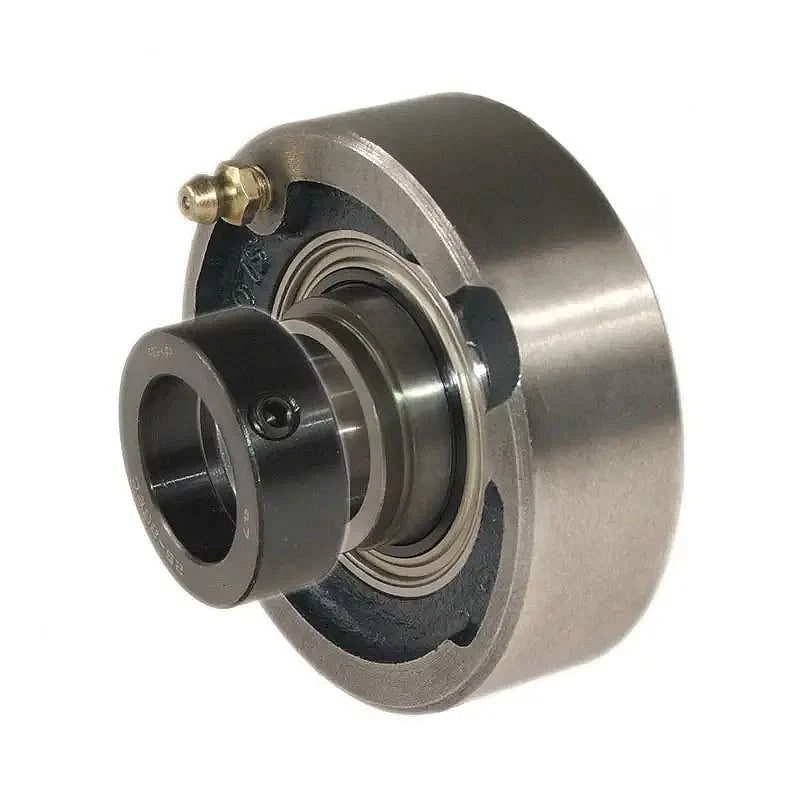

RHP SLC EC Series Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Outside Diameter:
106.39mm
Style:
SLC
Technical
Bore 1-1/2 inch
L 4.1885 inch
A 1.469 inch
A2 2.019 inch
B2 1.718 inch
s1 0.435 inch
d2 2.374 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2 kg
Insert <a href="advanced_search_result.php?keywords=1240-1-1/2ECG+insonly">1240-1-1/2ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
