• RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert
1 1

SKU: SL7/8DEC-RHP

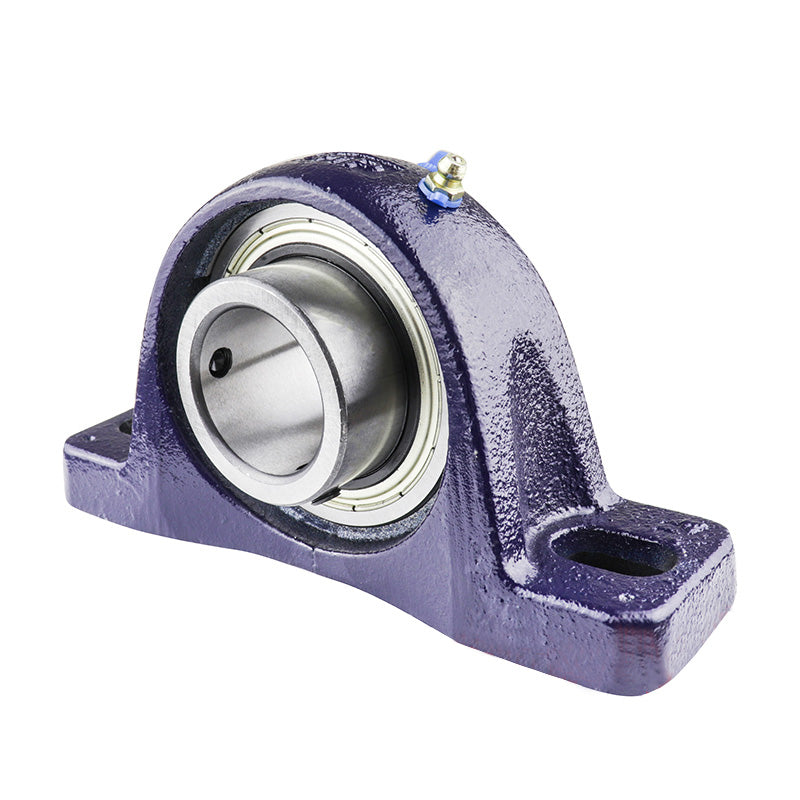

RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert

RHP SL7/8DEC Two Bolt Cast Iron Pillow Block and 7/8 Bore Eccentric Collar Full Width Insert
Rs. 5,984.94 ex VAT
Rs. 5,984.94 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 5,326.60
19+ Rs. 5,027.35
29+ Rs. 4,967.50
39+ Rs. 4,907.65
49+ Rs. 4,847.80
74+ Rs. 4,787.95
99+ Rs. 4,488.71
199+ Rs. 4,428.86
249+ Rs. 4,369.01
499+ Rs. 4,309.16
999+ Rs. 4,189.46
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, insert extends to front and back

Brand / Quality:
RHP - High Quality
Inside Diameter:
22.23mm = 0.875 (7/8) inch
Style:
SL
Bolt Hole Centres:
3.866-4.339 inch
Technical
Bore 7/8 inch
L 5.472 inch
H 1.312 inch
H1 0.504 inch
H2 2.669 inch
J max 4.339 inch
J min 3.866 inch
G 0.375 inch
A 1.417 inch
A1 0.965 inch
B3 1.748 inch
s2 0.689 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Insert <a href="advanced_search_result.php?keywords=1025-7/8DECG+insonly">1025-7/8DECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
