SKU: SL202_NAK

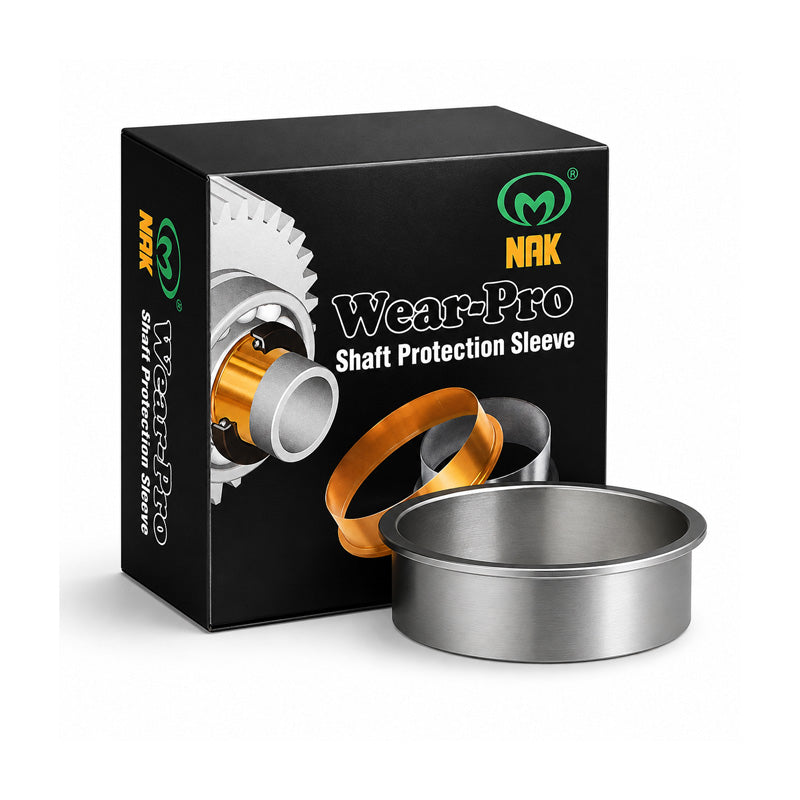

NAK SL202 Hardened Stainless Sleeve for Shafts 103.89-104.09mm - Allow 7-10 Days
NAK SL202 Hardened Stainless Sleeve for Shafts 103.89-104.09mm - Allow 7-10 Days
Regular price
Rs. 4,938.80
ex VAT
Regular price
Sale price
Rs. 4,938.80
ex VAT
Equivalent to: CR99409
In stock
Price Break
10+
Rs. 4,395.53
19+
Rs. 4,148.59
29+
Rs. 4,099.20
39+
Rs. 4,049.82
49+
Rs. 4,000.43
74+
Rs. 3,951.04
99+
Rs. 3,704.10
199+
Rs. 3,654.71
249+
Rs. 3,605.32
499+
Rs. 3,555.94
999+
Rs. 3,457.16
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99409
- Brand / Quality:
- NAK - High Quality
- Width:
- 24mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 104mm
- Flange Diameter:
- 112.7mm
Technical
Technical
| Shaft Diameter Range (A) | 103.89-104.09mm |
|---|---|
| Nominal Shaft Diameter (A) | 104mm |
| Flange Diameter (D) | 112.7mm |
| Width on Shaft (X) | 20mm |
| Overall Width (Y) | 24mm |
| Installation Depth (Z) | 36mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
