SKU: SL2-RHP

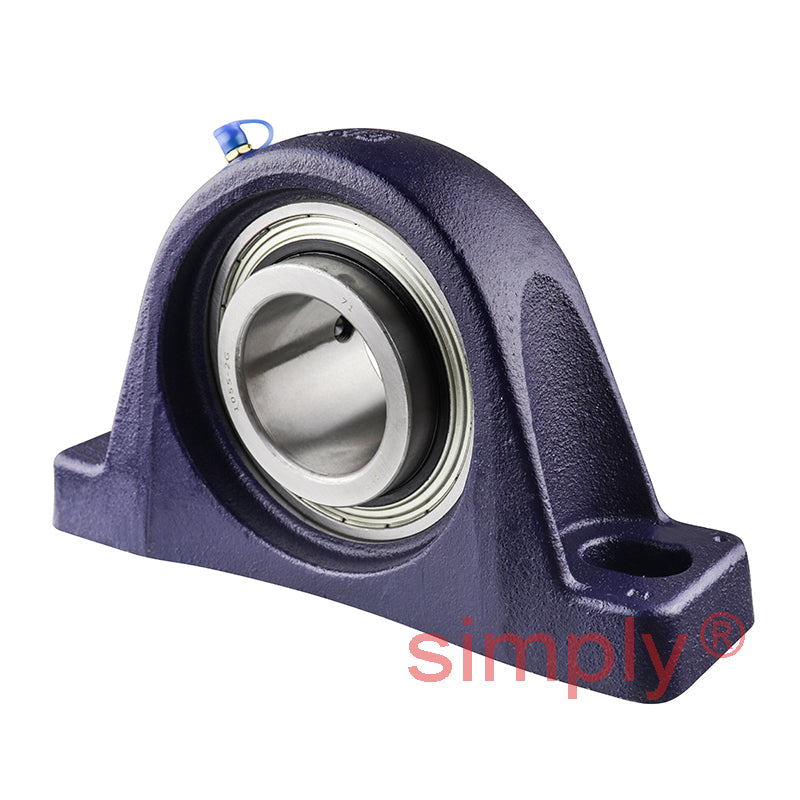

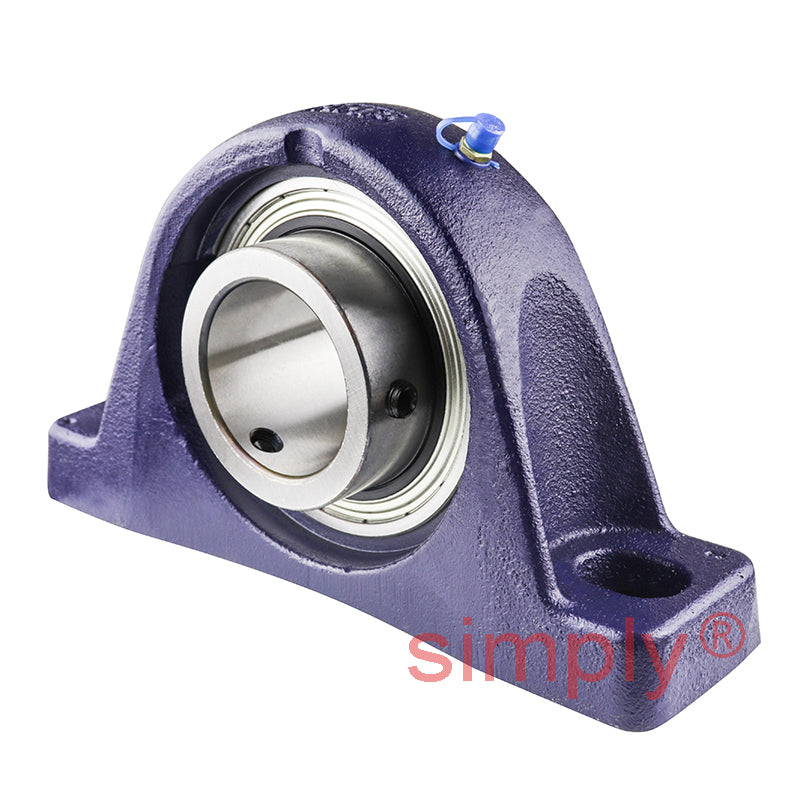

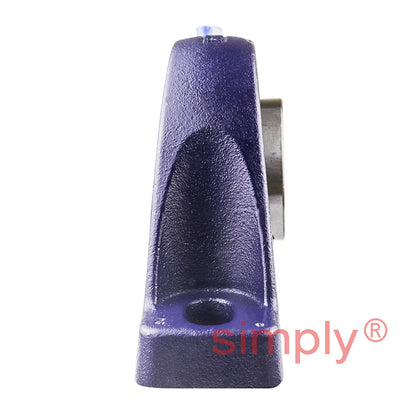

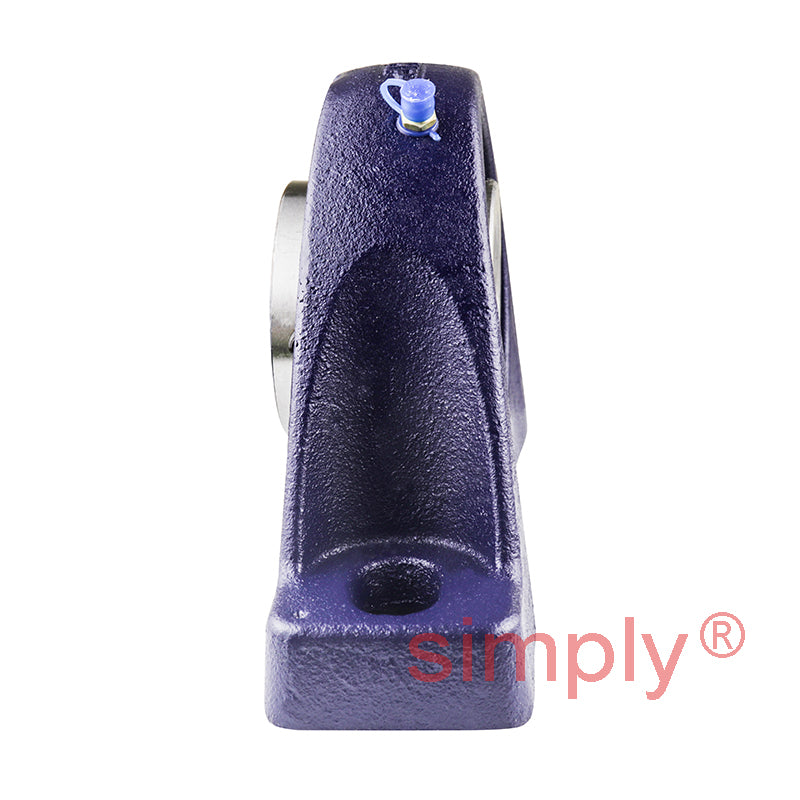

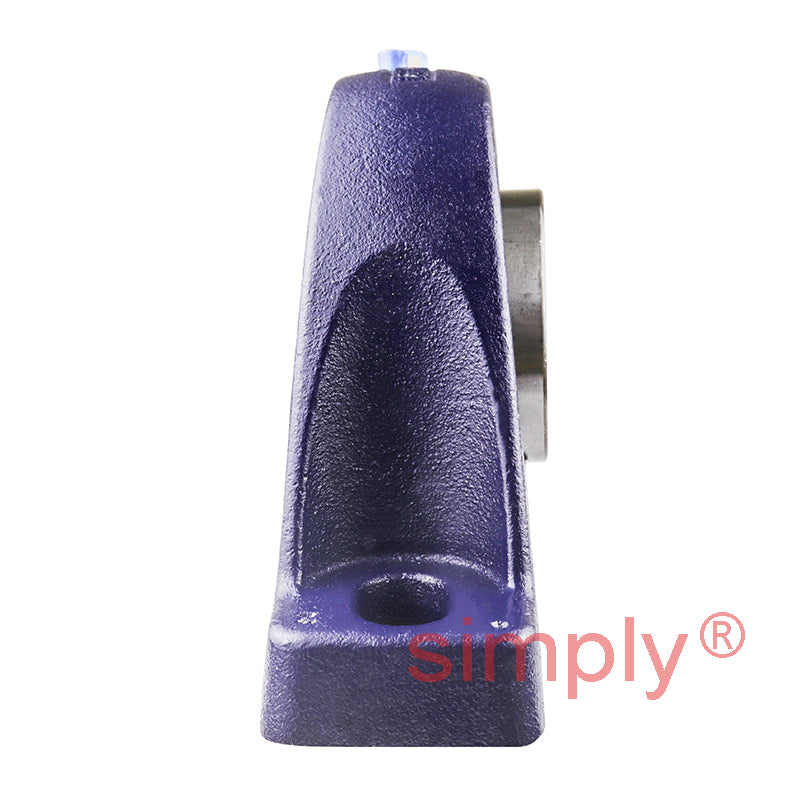

RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
RHP SL2 Two Bolt Cast Iron Pillow Block and 2 Bore Grub Screw Full Width Insert
Regular price
Rs. 13,760.55
ex VAT
Regular price
Sale price
Rs. 13,760.55
ex VAT
In stock
Price Break
10+
Rs. 12,246.89
19+
Rs. 11,558.86
29+
Rs. 11,421.26
39+
Rs. 11,283.65
49+
Rs. 11,146.05
74+
Rs. 11,008.44
99+
Rs. 10,320.41
199+
Rs. 10,182.81
249+
Rs. 10,045.20
499+
Rs. 9,907.60
999+
Rs. 9,632.39
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- SL
- Bolt Hole Centres:
- 6.398-7.028 inch

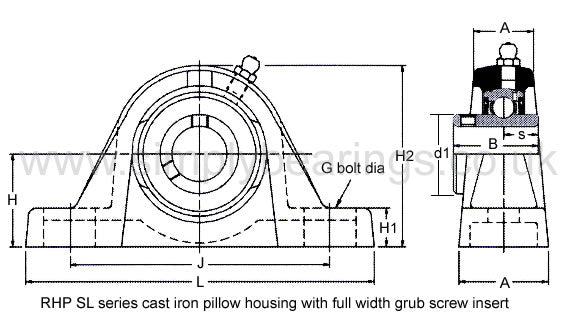

Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 8.641 inch |
| H | 2.437 inch |
| H1 | 0.913 inch |
| H2 | 5.039 inch |
| J max | 7.028 inch |
| J min | 6.398 inch |
| G | 0.625 inch |
| A | 2.362 inch |
| A1 | 1.555 inch |
| B | 2.187 inch |
| s | 0.877 inch |
| s1 | - inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
