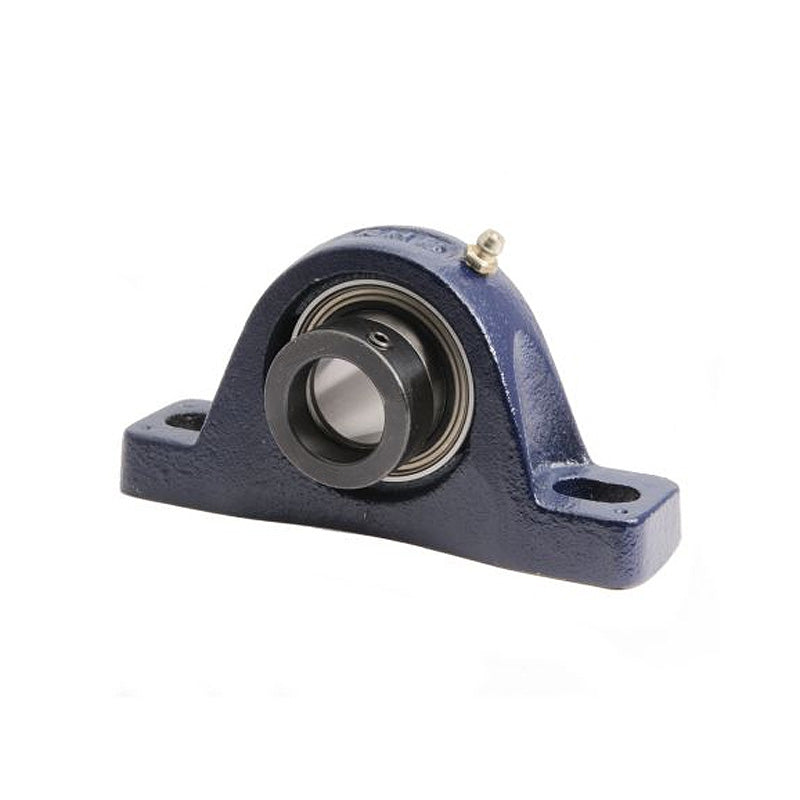

• RHP SL2-3/16DEC Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Eccentric Collar Full Width Insert
1 1

SKU: SL2.3/16DEC-RHP

RHP SL2-3/16DEC Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Eccentric Collar Full Width Insert

RHP SL2-3/16DEC Two Bolt Cast Iron Pillow Block and 2-3/16 Bore Eccentric Collar Full Width Insert
Rs. 17,032.89 ex VAT
Rs. 17,032.89 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 15,159.27
19+ Rs. 14,307.63
29+ Rs. 14,137.30
39+ Rs. 13,966.97
49+ Rs. 13,796.64
74+ Rs. 13,626.31
99+ Rs. 12,774.67
199+ Rs. 12,604.34
249+ Rs. 12,434.01
499+ Rs. 12,263.68
999+ Rs. 11,923.02
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, insert extends to front and back

Brand / Quality:
RHP - High Quality
Inside Diameter:
55.56mm = 2.187 (2-3/16) inch
Style:
SL
Bolt Hole Centres:
6.398-7.028 inch
Technical
Bore 2-3/16 inch
L 8.641 inch
H 2.437 inch
H1 0.913 inch
H2 5.039 inch
J max 7.028 inch
J min 6.398 inch
G 0.625 inch
A 2.362 inch
A1 1.555 inch
B3 2.813 inch
s2 1.095 inch
d2 3 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Insert <a href="advanced_search_result.php?keywords=1055-2-3/16DECG+insonly">1055-2-3/16DECG Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
