SKU: SL2.15/16DEC-RHP

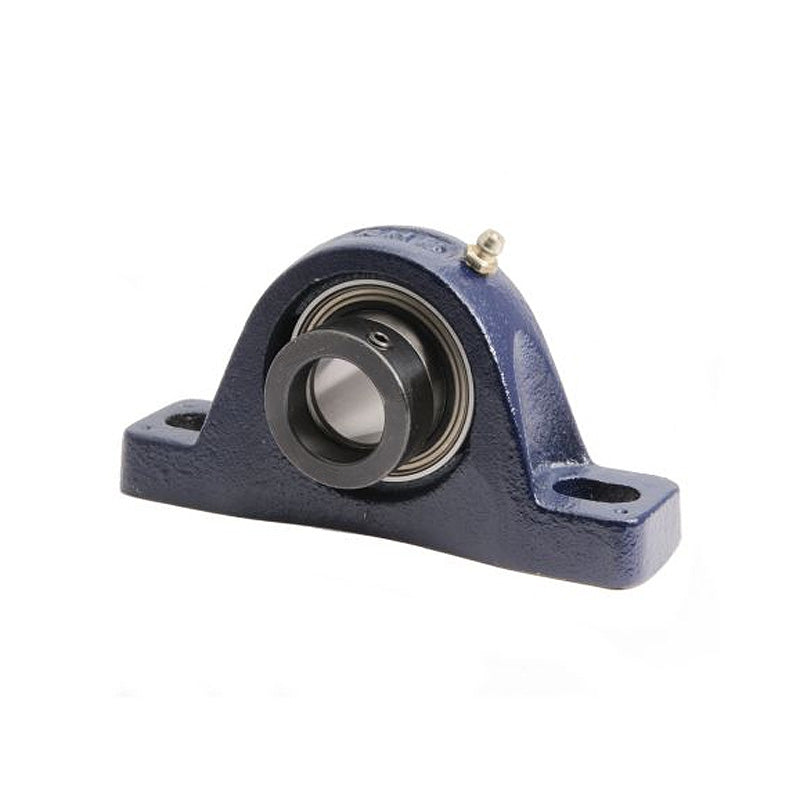

RHP SL2-15/16DEC Two Bolt Cast Iron Pillow Block and 2-15/16 Bore Eccentric Collar Full Width Insert
RHP SL2-15/16DEC Two Bolt Cast Iron Pillow Block and 2-15/16 Bore Eccentric Collar Full Width Insert
Regular price
Rs. 40,272.35
ex VAT
Regular price
Sale price
Rs. 40,272.35
ex VAT
In stock
Price Break
10+
Rs. 35,842.39
19+
Rs. 33,828.77
29+
Rs. 33,426.05
39+
Rs. 33,023.33
49+
Rs. 32,620.60
74+
Rs. 32,217.88
99+
Rs. 30,204.26
199+
Rs. 29,801.54
249+
Rs. 29,398.82
499+
Rs. 28,996.09
999+
Rs. 28,190.65
Couldn't load pickup availability
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 74.61mm = 2.937 (2-15/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 8.689-9.563 inch
Technical
Technical
| Bore | 2-15/16 inch |
|---|---|
| L | 11.748 inch |
| H | 3.25 inch |
| H1 | 1.374 inch |
| H2 | 6.563 inch |
| J max | 9.563 inch |
| J min | 8.689 inch |
| G | 0.75 inch |
| A | 3.252 inch |
| A1 | 2.189 inch |
| B3 | 3.611 inch |
| s2 | 1.471 inch |
| d2 | 4 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-15/16DECG+insonly">1075-2-15/16DECG Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
