SKU: SL2.1/4DEC-RHP

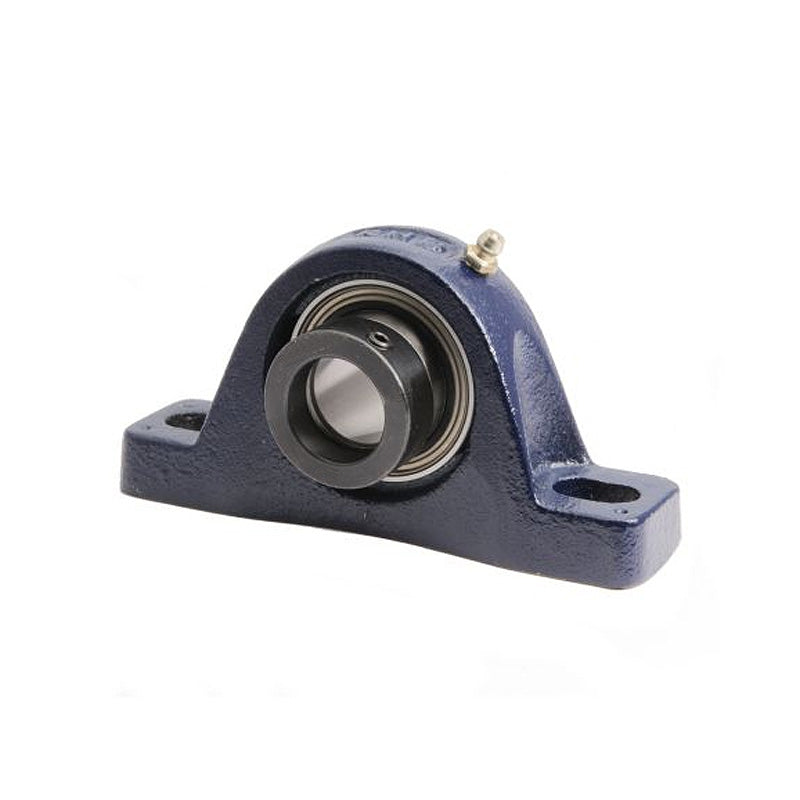

RHP SL2-1/4DEC Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Eccentric Collar Full Width Insert
RHP SL2-1/4DEC Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Eccentric Collar Full Width Insert
Regular price
Rs. 21,405.73
ex VAT
Regular price
Sale price
Rs. 21,405.73
ex VAT
In stock
Price Break
10+
Rs. 19,051.10
19+
Rs. 17,980.81
29+
Rs. 17,766.76
39+
Rs. 17,552.70
49+
Rs. 17,338.64
74+
Rs. 17,124.58
99+
Rs. 16,054.30
199+
Rs. 15,840.24
249+
Rs. 15,626.18
499+
Rs. 15,412.13
999+
Rs. 14,984.01
Couldn't load pickup availability
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- SL
- Bolt Hole Centres:
- 7.189-8.063 inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 9.803 inch |
| H | 2.687 inch |
| H1 | 1.126 inch |
| H2 | 5.437 inch |
| J max | 8.063 inch |
| J min | 7.189 inch |
| G | 0.625 inch |
| A | 2.748 inch |
| A1 | 1.811 inch |
| B3 | 3.064 inch |
| s2 | 1.221 inch |
| d2 | 3.312 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4DECG+insonly">1060-2-1/4DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
