SKU: SL2.1/4-RHP

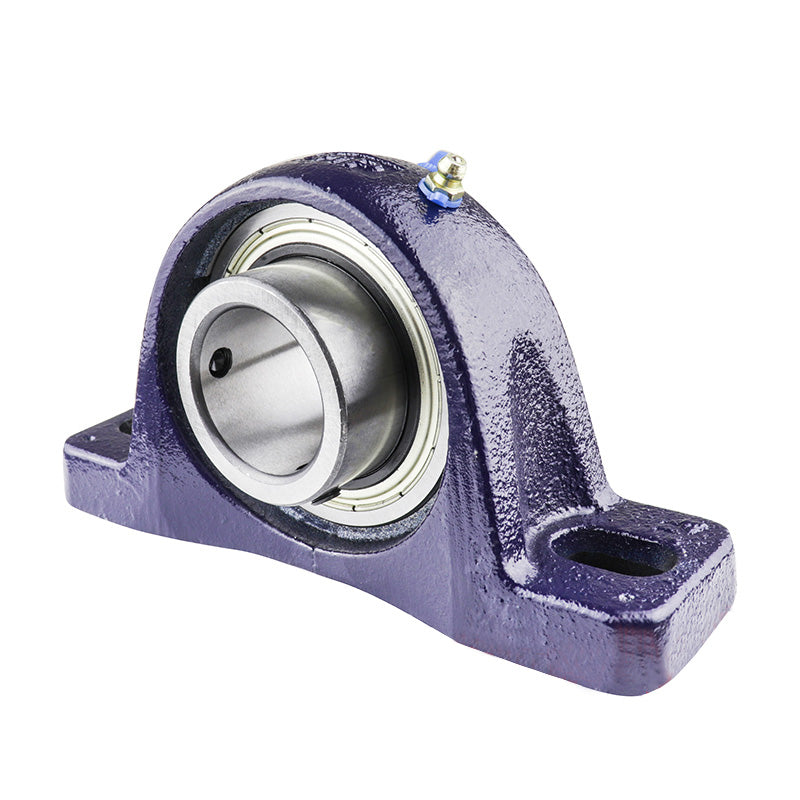

RHP SL2-1/4 Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Grub Screw Full Width Insert
RHP SL2-1/4 Two Bolt Cast Iron Pillow Block and 2-1/4 Bore Grub Screw Full Width Insert
Regular price
Rs. 16,907.52
ex VAT
Regular price
Sale price
Rs. 16,907.52
ex VAT
In stock
Price Break
10+
Rs. 15,047.69
19+
Rs. 14,202.32
29+
Rs. 14,033.24
39+
Rs. 13,864.17
49+
Rs. 13,695.09
74+
Rs. 13,526.02
99+
Rs. 12,680.64
199+
Rs. 12,511.56
249+
Rs. 12,342.49
499+
Rs. 12,173.41
999+
Rs. 11,835.26
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- SL
- Bolt Hole Centres:
- 7.189-8.063 inch
Technical
Technical
| Bore | 2-1/4 inch |
|---|---|
| L | 9.803 inch |
| H | 2.687 inch |
| H1 | 1.126 inch |
| H2 | 5.437 inch |
| J max | 8.063 inch |
| J min | 7.189 inch |
| G | 0.625 inch |
| A | 2.748 inch |
| A1 | 1.811 inch |
| B | 2.562 inch |
| s | 1.002 inch |
| s1 | - inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-1/4G+insonly">1060-2-1/4G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
