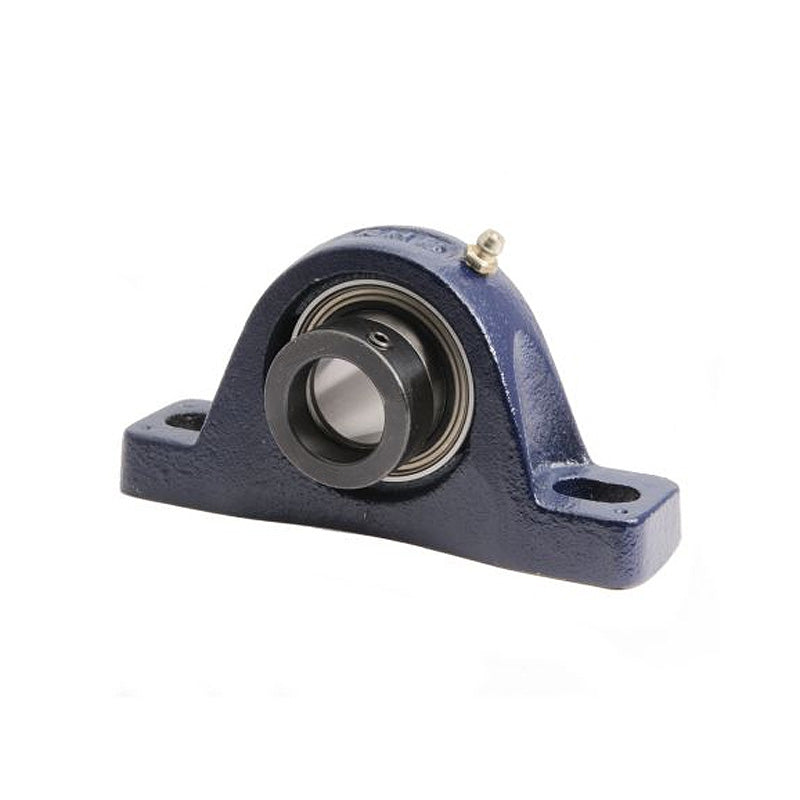

• RHP SL15EC Two Bolt Cast Iron Pillow Block and 15mm Bore Eccentic Collar Flat Back Insert
1 1

SKU: SL15EC-RHP

RHP SL15EC Two Bolt Cast Iron Pillow Block and 15mm Bore Eccentic Collar Flat Back Insert

RHP SL15EC Two Bolt Cast Iron Pillow Block and 15mm Bore Eccentic Collar Flat Back Insert
Rs. 4,210.54
Rs. 4,210.54
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 3,747.38
19+ Rs. 3,536.85
29+ Rs. 3,494.75
39+ Rs. 3,452.64
49+ Rs. 3,410.54
74+ Rs. 3,368.43
99+ Rs. 3,157.91
199+ Rs. 3,115.80
249+ Rs. 3,073.69
499+ Rs. 3,031.59
999+ Rs. 2,947.38
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SL-EC Series Plummer / Pillow Housings: Supplied with a sealed flat back bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation.
The insert can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
15mm
Style:
SL
Bolt Hole Centres:
85.5-91.5mm

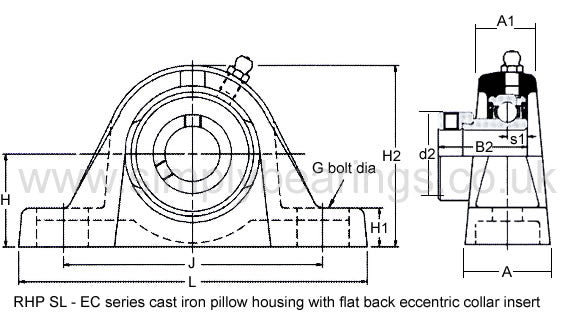

Technical
Bore 15mm
L 119mm
H 26.97mm
H1 11mm
H2 54mm
J max 91.5mm
J min 85.5mm
G 10mm
A 30mm
A1 20.5mm
B2 28.54mm
s1 6.55mm
d2 28.58mm
Dynamic load Cr 9550 N
Static load Cor 4800 N
Rec max speed 7000 rpm
Insert <a href="advanced_search_result.php?keywords=1217-15ECG+insonly">1217-15ECG Click Here</a>
Casting group 1
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
