SKU: SL1.3/8EC-RHP

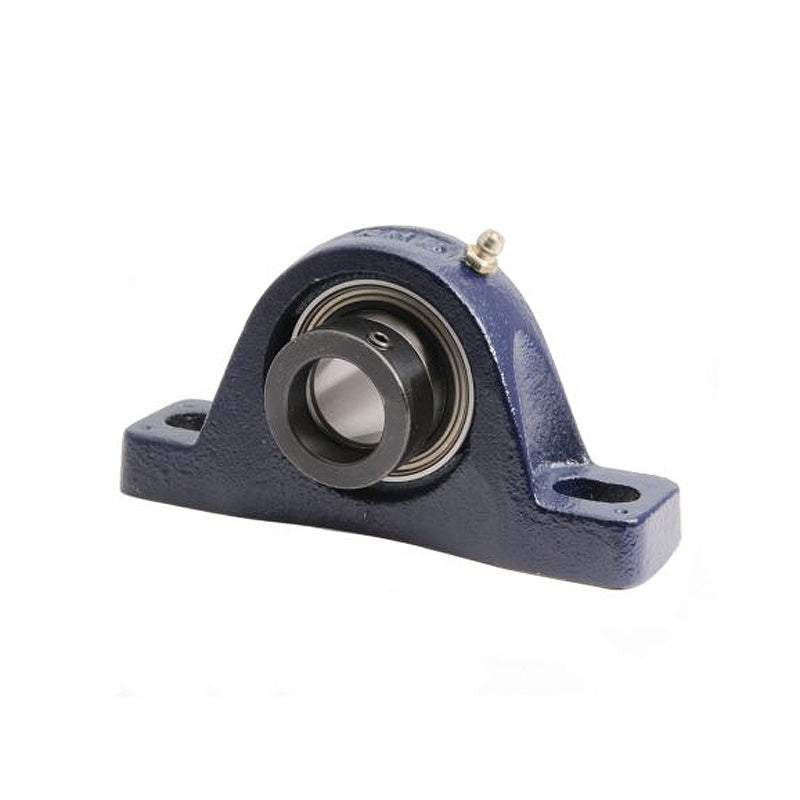

RHP SL1-3/8EC Two Bolt Cast Iron Pillow Block and 1-3/8 Bore Eccentic Collar Flat Back Insert
RHP SL1-3/8EC Two Bolt Cast Iron Pillow Block and 1-3/8 Bore Eccentic Collar Flat Back Insert
Regular price
Rs. 7,483.08
ex VAT
Regular price
Sale price
Rs. 7,483.08
ex VAT
In stock
Price Break
10+
Rs. 6,659.94
19+
Rs. 6,285.79
29+
Rs. 6,210.96
39+
Rs. 6,136.13
49+
Rs. 6,061.29
74+
Rs. 5,986.46
99+
Rs. 5,612.31
199+
Rs. 5,537.48
249+
Rs. 5,462.65
499+
Rs. 5,387.82
999+
Rs. 5,238.16
Couldn't load pickup availability
Description
Description
|
RHP SL-EC Series Plummer / Pillow Housings: Supplied with a sealed flat back bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 4.783-5.374 inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 6.535 inch |
| H | 1.812 inch |
| H1 | 0.63 inch |
| H2 | 3.602 inch |
| J max | 5.374 inch |
| J min | 4.783 inch |
| G | 0.5 inch |
| A | 1.752 inch |
| A1 | 1.201 inch |
| B2 | 1.531 inch |
| s1 | 0.376 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1235-1-3/8ECG+insonly">1235-1-3/8ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
