SKU: SL1.3/4-RHP

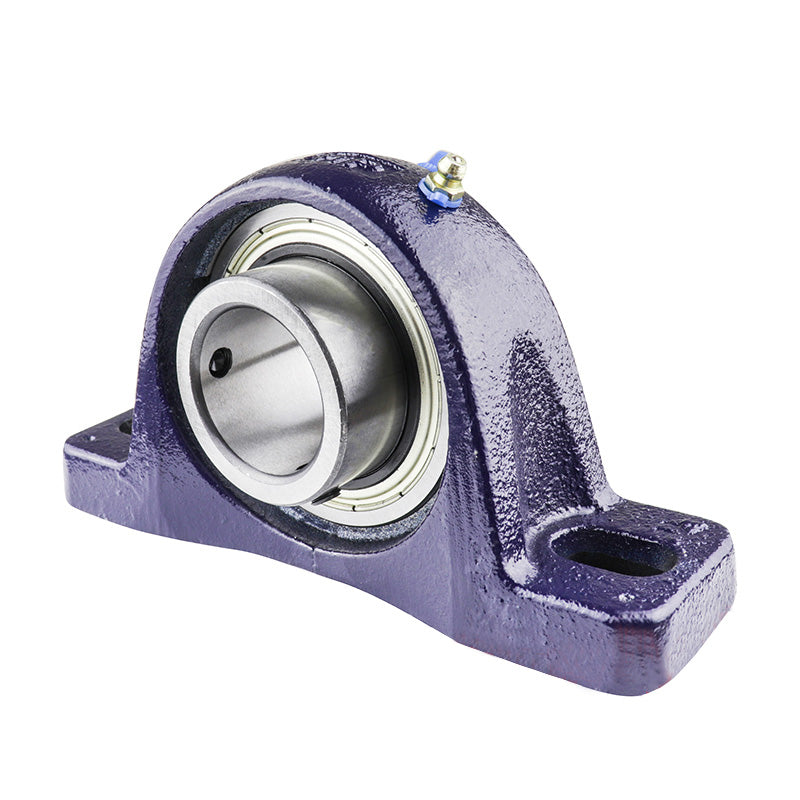

RHP SL1-3/4 Two Bolt Cast Iron Pillow Block and 1-3/4 Bore Grub Screw Full Width Insert
RHP SL1-3/4 Two Bolt Cast Iron Pillow Block and 1-3/4 Bore Grub Screw Full Width Insert
Regular price
Rs. 9,264.88
ex VAT
Regular price
Sale price
Rs. 9,264.88
ex VAT
In stock
Price Break
10+
Rs. 8,245.74
19+
Rs. 7,782.50
29+
Rs. 7,689.85
39+
Rs. 7,597.20
49+
Rs. 7,504.55
74+
Rs. 7,411.90
99+
Rs. 6,948.66
199+
Rs. 6,856.01
249+
Rs. 6,763.36
499+
Rs. 6,670.71
999+
Rs. 6,485.42
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- SL
- Bolt Hole Centres:
- 5.571-6.358 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 7.776 inch |
| H | 2.062 inch |
| H1 | 0.724 inch |
| H2 | 4.189 inch |
| J max | 6.358 inch |
| J min | 5.571 inch |
| G | 0.5 inch |
| A | 2.126 inch |
| A1 | 1.378 inch |
| B | 1.938 inch |
| s | 0.752 inch |
| s1 | 0.435 inch |
| d1 | 2.256 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-3/4G+insonly">1045-1-3/4G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
