SKU: SL1.3/16EC-RHP

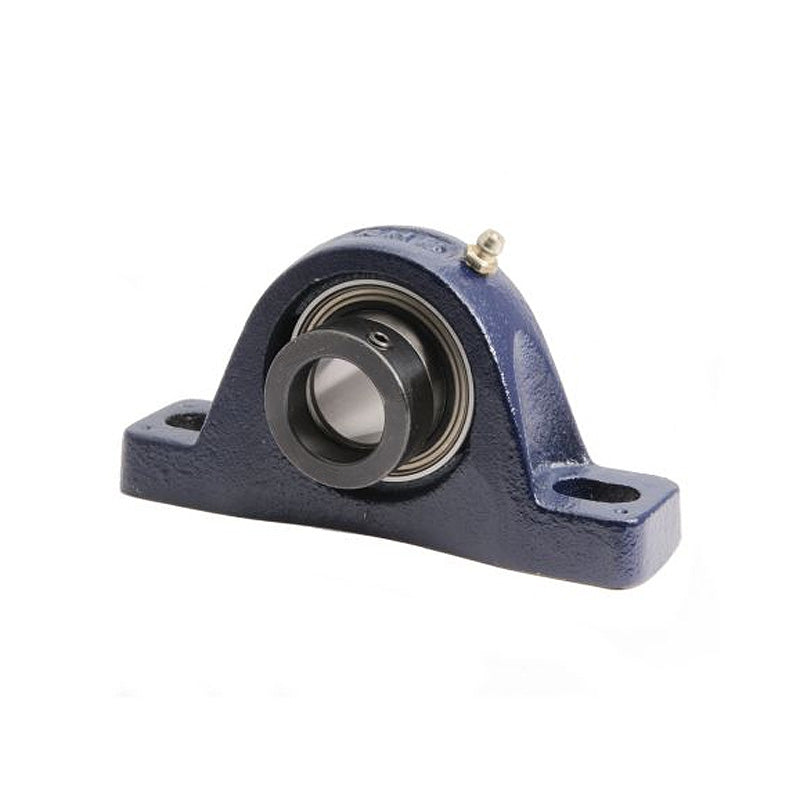

RHP SL1-3/16EC Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Eccentic Collar Flat Back Insert
RHP SL1-3/16EC Two Bolt Cast Iron Pillow Block and 1-3/16 Bore Eccentic Collar Flat Back Insert
Regular price
Rs. 14,034.09
ex VAT
Regular price
Sale price
Rs. 14,034.09
ex VAT
In stock
Price Break
10+
Rs. 12,490.34
19+
Rs. 11,788.64
29+
Rs. 11,648.29
39+
Rs. 11,507.95
49+
Rs. 11,367.61
74+
Rs. 11,227.27
99+
Rs. 10,525.57
199+
Rs. 10,385.23
249+
Rs. 10,244.89
499+
Rs. 10,104.54
999+
Rs. 9,823.86
Couldn't load pickup availability
Description
Description
|
RHP SL-EC Series Plummer / Pillow Housings: Supplied with a sealed flat back bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 4.291-5.118 inch
Technical
Technical
| Bore | 1-3/16 inch |
|---|---|
| L | 6.358 inch |
| H | 1.562 inch |
| H1 | 0.571 inch |
| H2 | 3.13 inch |
| J max | 5.118 inch |
| J min | 4.291 inch |
| G | 0.5 inch |
| A | 1.614 inch |
| A1 | 1.083 inch |
| B2 | 1.405 inch |
| s1 | 0.356 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1230-1-3/16ECG+insonly">1230-1-3/16ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
