SKU: SL1/2-RHP

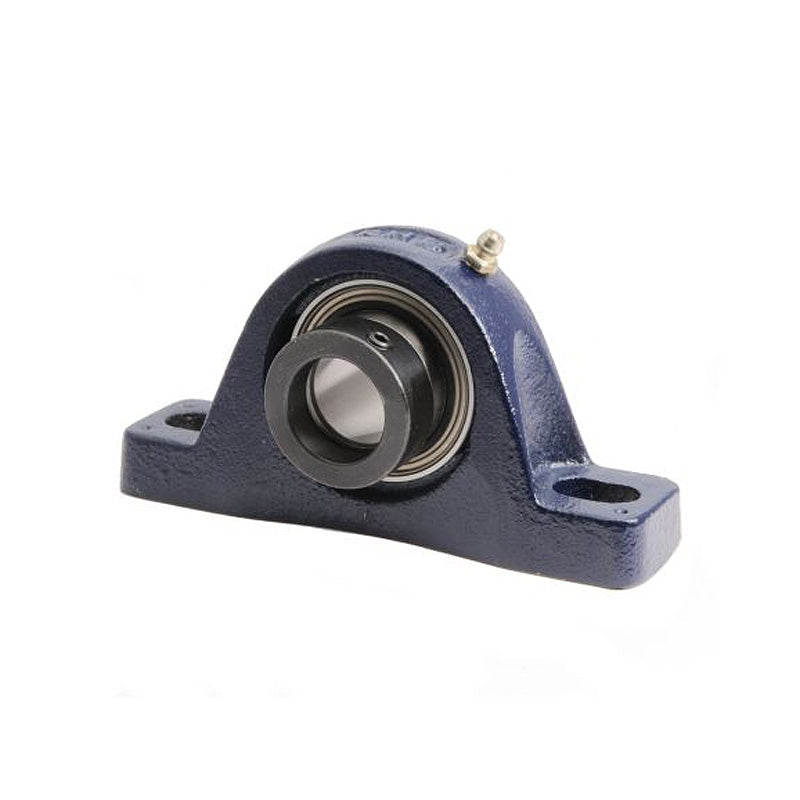

RHP SL1/2 Two Bolt Cast Iron Pillow Block and 1/2 Bore Grub Screw Full Width Insert
RHP SL1/2 Two Bolt Cast Iron Pillow Block and 1/2 Bore Grub Screw Full Width Insert
Regular price
Rs. 4,337.37
ex VAT
Regular price
Sale price
Rs. 4,337.37
ex VAT
In stock
Price Break
10+
Rs. 3,860.26
19+
Rs. 3,643.39
29+
Rs. 3,600.02
39+
Rs. 3,556.64
49+
Rs. 3,513.27
74+
Rs. 3,469.90
99+
Rs. 3,253.03
199+
Rs. 3,209.65
249+
Rs. 3,166.28
499+
Rs. 3,122.91
999+
Rs. 3,036.16
Couldn't load pickup availability
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- SL
- Bolt Hole Centres:
- 3.366-3.602 inch
Technical
Technical
| Bore | 1/2 inch |
|---|---|
| L | 4.685 inch |
| H | 1.062 inch |
| H1 | 0.433 inch |
| H2 | 2.126 inch |
| J max | 3.602 inch |
| J min | 3.366 inch |
| G | 0.375 inch |
| A | 1.181 inch |
| A1 | 0.807 inch |
| B | 1.078 inch |
| s | 0.455 inch |
| s1 | 0.258 inch |
| d1 | 0.953 inch |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Insert | 1017-1/2G |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
