SKU: SL1.15/16EC-RHP

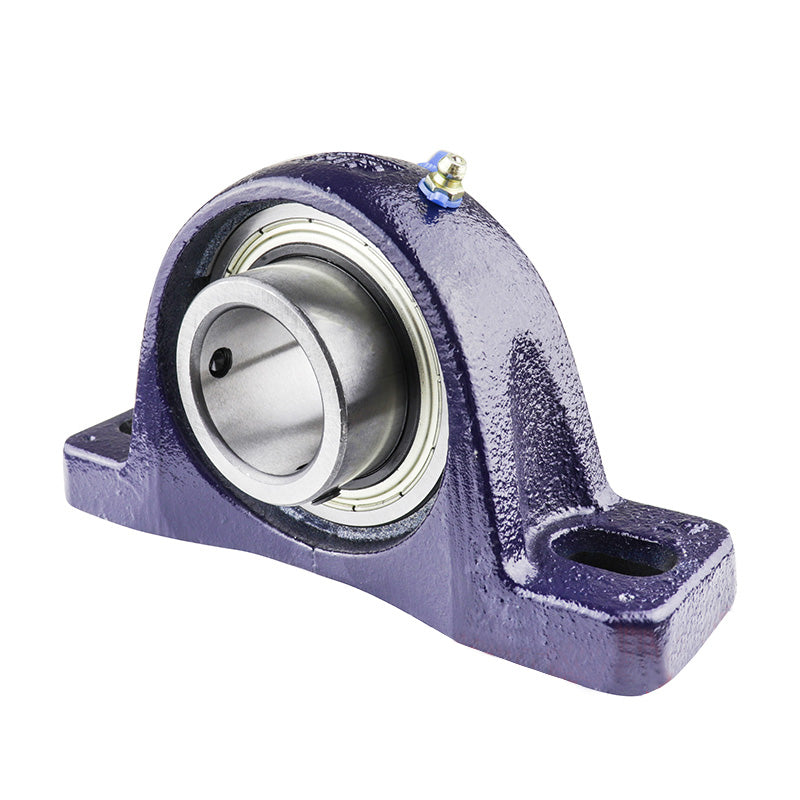

RHP SL1-15/16EC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentic Collar Flat Back Insert
RHP SL1-15/16EC Two Bolt Cast Iron Pillow Block and 1-15/16 Bore Eccentic Collar Flat Back Insert
Regular price
Rs. 11,681.15
ex VAT
Regular price
Sale price
Rs. 11,681.15
ex VAT
In stock
Price Break
10+
Rs. 10,396.22
19+
Rs. 9,812.17
29+
Rs. 9,695.35
39+
Rs. 9,578.54
49+
Rs. 9,461.73
74+
Rs. 9,344.92
99+
Rs. 8,760.86
199+
Rs. 8,644.05
249+
Rs. 8,527.24
499+
Rs. 8,410.43
999+
Rs. 8,176.81
Couldn't load pickup availability
Description
Description
|
RHP SL-EC Series Plummer / Pillow Housings: Supplied with a sealed flat back bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 5.945-6.969 inch
Technical
Technical
| Bore | 1-15/16 inch |
|---|---|
| L | 8.425 inch |
| H | 2.187 inch |
| H1 | 0.76 inch |
| H2 | 4.488 inch |
| J max | 6.969 inch |
| J min | 5.945 inch |
| G | 0.5 inch |
| A | 2.165 inch |
| A1 | 1.417 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.75 inch |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1250-1-15/16ECG+insonly">1250-1-15/16ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
