SKU: SL1.11/16DEC-RHP

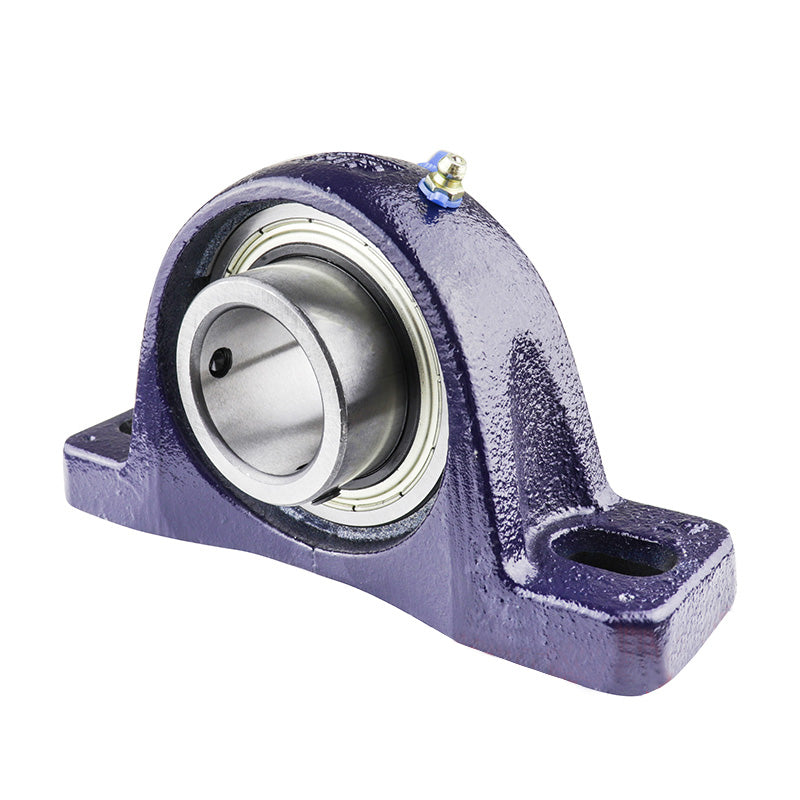

RHP SL1-11/16DEC Two Bolt Cast Iron Pillow Block and 1-11/16 Bore Eccentric Collar Full Width Insert
RHP SL1-11/16DEC Two Bolt Cast Iron Pillow Block and 1-11/16 Bore Eccentric Collar Full Width Insert
Regular price
Rs. 11,562.11
ex VAT
Regular price
Sale price
Rs. 11,562.11
ex VAT
In stock
Price Break
10+
Rs. 10,290.28
19+
Rs. 9,712.17
29+
Rs. 9,596.55
39+
Rs. 9,480.93
49+
Rs. 9,365.31
74+
Rs. 9,249.69
99+
Rs. 8,671.58
199+
Rs. 8,555.96
249+
Rs. 8,440.34
499+
Rs. 8,324.72
999+
Rs. 8,093.48
Couldn't load pickup availability
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- SL
- Bolt Hole Centres:
- 5.571-6.358 inch
Technical
Technical
| Bore | 1-11/16 inch |
|---|---|
| L | 7.776 inch |
| H | 2.062 inch |
| H1 | 0.724 inch |
| H2 | 4.189 inch |
| J max | 6.358 inch |
| J min | 5.571 inch |
| G | 0.5 inch |
| A | 2.126 inch |
| A1 | 1.378 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-11/16DECG+insonly">1045-1-11/16DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
