SKU: SK014-205-KRR-INA

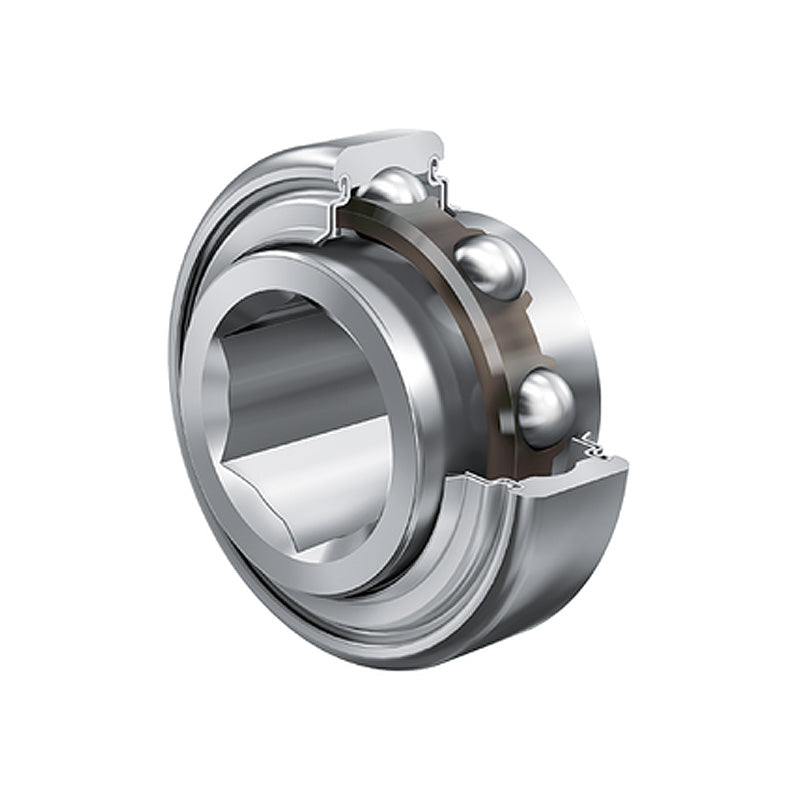

INA SK014205KRR Metric Parallel Outer Hexagonal Bore Bearing Insert with R Seals 22.23mm Bore
INA SK014205KRR Metric Parallel Outer Hexagonal Bore Bearing Insert with R Seals 22.23mm Bore
Regular price
Rs. 3,419.38
Regular price
Sale price
Rs. 3,419.38
Taxes included.
In stock
Price Break
10+
Rs. 3,043.25
19+
Rs. 2,872.28
29+
Rs. 2,838.09
39+
Rs. 2,803.89
49+
Rs. 2,769.70
74+
Rs. 2,735.50
99+
Rs. 2,564.54
199+
Rs. 2,530.34
249+
Rs. 2,496.15
499+
Rs. 2,461.95
999+
Rs. 2,393.57
Description
Description
INA SK..-KRR Series Inserts: Bearing insert with parallel outer race, hexagonal bore and R seals. Bearings with a profiled bore are used where shafts must transmit very high torques and this is only possible using square or hexagonal shafts. Rotation is prevented by the geometrical locking effect. These bearings have a Corrotect? coating. Operating temperature range: -20 deg C to +120 deg C.
Benefits: Compensation of misalignment.
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Width:
- 25.4mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 22.23mm |
|---|---|
| d | 7/8 inch |
| Tolerance | +0.15 / +0.00 |
| Dsp | 52mm |
| B | 25.4mm |
| C | 15mm |
| C2 | 16.5mm |
| D1 | 42.5mm |
| d1 | 33.8mm |
| F | 26.5mm |
| r | 0.12mm |
| Limiting speed nG Fett | 900 rpm |
| Dynamic load Cr | 14900 N |
| Static load C0r | 7800 N |
| Weight | 0.2 kg |
