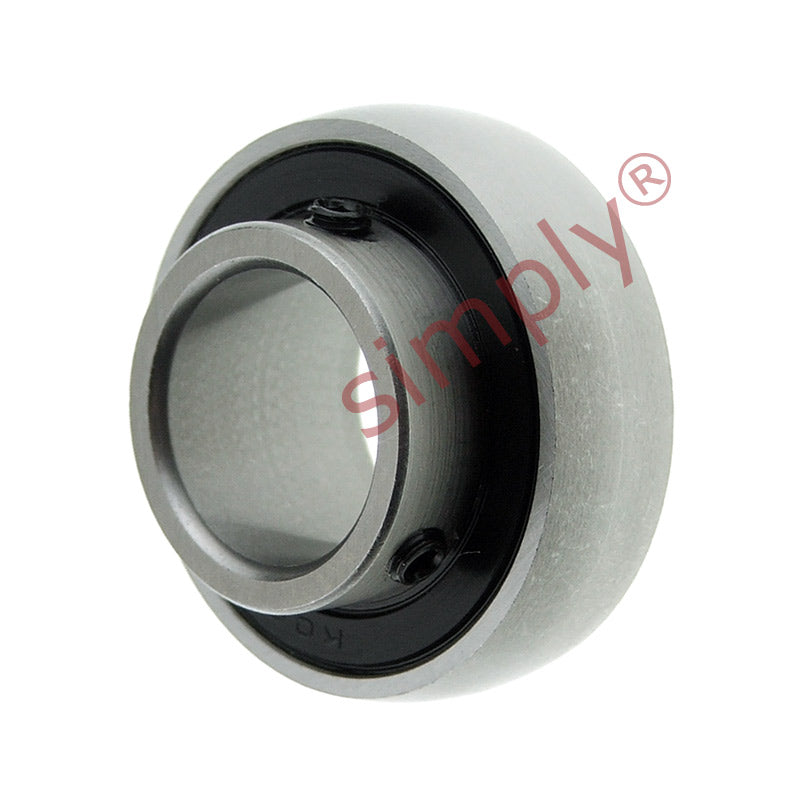

• SK001 Stainless Steel Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia - Allow 2-3 Days
1 1

SKU: SK001

SK001 Stainless Steel Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia - Allow 2-3 Days

SK001 Stainless Steel Metric Grub Screw Type Bearing Insert with 12mm Bore 28mm Outside Dia - Allow 2-3 Days
Rs. 1,984.29
Rs. 1,984.29
Sale Sold out
Taxes included.

In stock

Price Break
5+ Rs. 1,964.45
10+ Rs. 1,885.08
20+ Rs. 1,845.39
50+ Rs. 1,785.86
100+ Rs. 1,746.18
500+ Rs. 1,646.96
1000+ Rs. 1,389.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Miniature SB Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers..
Benefits: Cost effective bearing insert, grub screw fixing, flat back design

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
28mm
Style:
SK
Technical
Inside Diameter d 12mm
Outside Diameter D 28mm
Bi 14.5mm
Be 8mm
r 0.5mm
n 4mm
G 3mm
W 17.35mm
Grub screw M3x0.35
Dynamic load 520N ~ 53.025 kgf
Static load 245N ~ 24.983 kgf
Weight 0.03 kg
