SKU: SIL25C-SKF

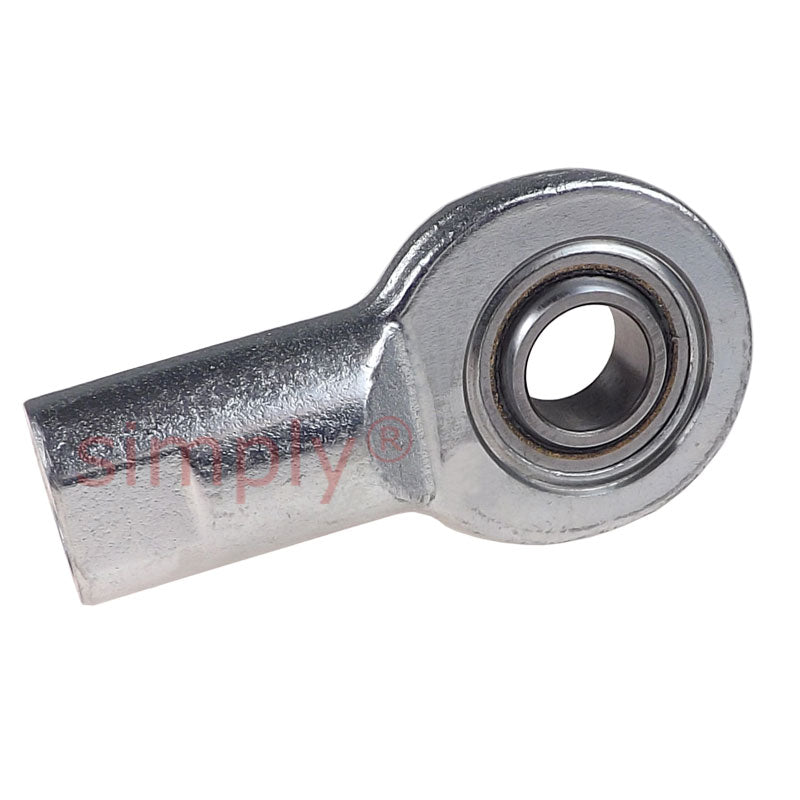

SKF SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
SKF SIL25C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M24x2 Thread
Regular price
Rs. 11,281.66
ex VAT
Regular price
Sale price
Rs. 11,281.66
ex VAT
Equivalent to: GIL25UK
In stock
Price Break
10+
Rs. 10,040.68
19+
Rs. 9,476.59
29+
Rs. 9,363.78
39+
Rs. 9,250.96
49+
Rs. 9,138.14
74+
Rs. 9,025.33
99+
Rs. 8,461.25
199+
Rs. 8,348.43
249+
Rs. 8,235.61
499+
Rs. 8,122.80
999+
Rs. 7,897.16
Couldn't load pickup availability
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL25UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M24x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 25mm
- Liner Type:
- PTFE Sintered Bronze Lined

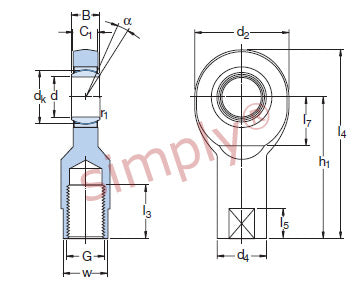

Technical
Technical
| d | 25mm |
|---|---|
| d2 max | 65mm |
| G 6H | M24x2 |
| B | 20mm |
| C1 max | 18mm |
| h1 | 94mm |
| a | 7deg |
| Dynamic load C | 51 kN |
| Static load Co | 90 kN |
| Weight | 0.65 kg |
| dk | 35.5mm |
| d4 | 35mm |
| l3 min | 36mm |
| l4 max | 128mm |
| l5 | 18mm |
| l7 min | 30mm |
| r1 min | 0.6mm |
| w h14 | 30mm |
