SKU: SIKAC8M-CDX

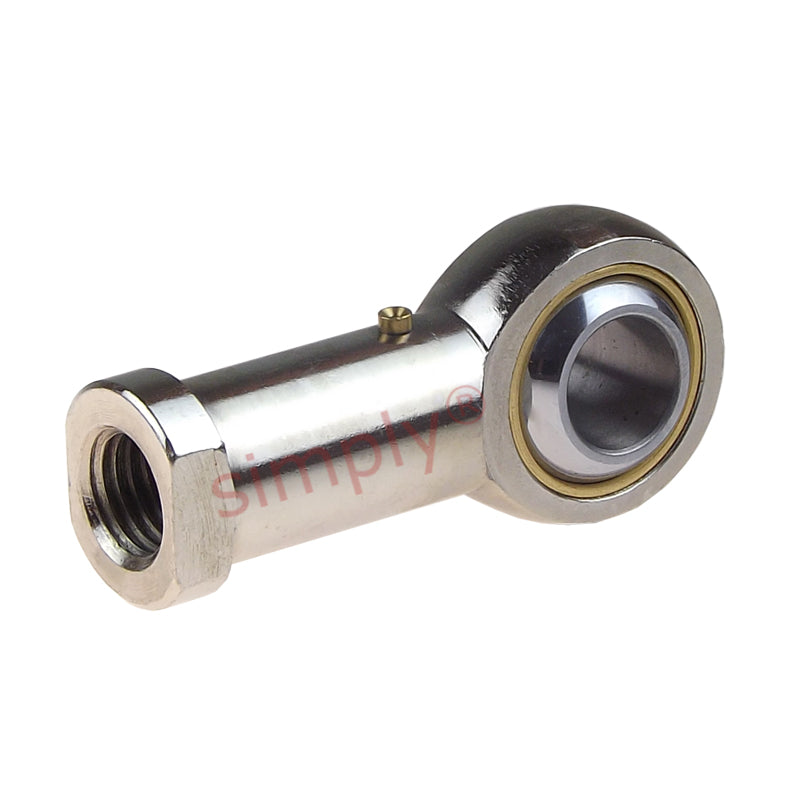

Codex SIKAC8M Right Hand Steel / Bronze Lined Plain Female Rod End M8 Thread
Codex SIKAC8M Right Hand Steel / Bronze Lined Plain Female Rod End M8 Thread
Regular price
Rs. 1,272.51
Regular price
Sale price
Rs. 1,272.51
Taxes included.
Equivalent to: GIKF8PB TSF8 SIBP8S PHS8 SF8 FB-M08
In stock
Price Break
10+
Rs. 1,132.53
19+
Rs. 1,068.91
29+
Rs. 1,056.18
39+
Rs. 1,043.46
49+
Rs. 1,030.73
74+
Rs. 1,018.01
99+
Rs. 954.38
199+
Rs. 941.66
249+
Rs. 928.93
499+
Rs. 916.21
999+
Rs. 890.76
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: GIKF8PB TSF8 SIBP8S PHS8 SF8 FB-M08
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M8
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 8mm
- Material:
- Bronze Lined
Technical
Technical

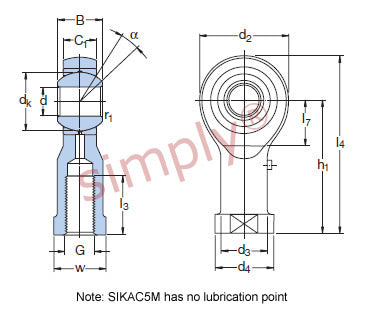

| d | 8mm |
|---|---|
| d2 max | 25mm |
| G | M8 |
| B | 12mm |
| C1 max | 9mm |
| h1 | 36mm |
| Max misalignment angle | 14 degrees |
| Dynamic load | 7.2 kN |
| Static load | 9.15 kN |
| dk | 15.8mm |
| d3 | 12.5mm |
| d4 max | 17mm |
| l3 min | 12mm |
| l4 max | 50mm |
| l5 | 5mm |
| l7 min | 12mm |
| r1 min | 0.3mm |
| w | 14mm |
| Weight | 0.043 kg |
