SKU: SIKAC6M-FLU

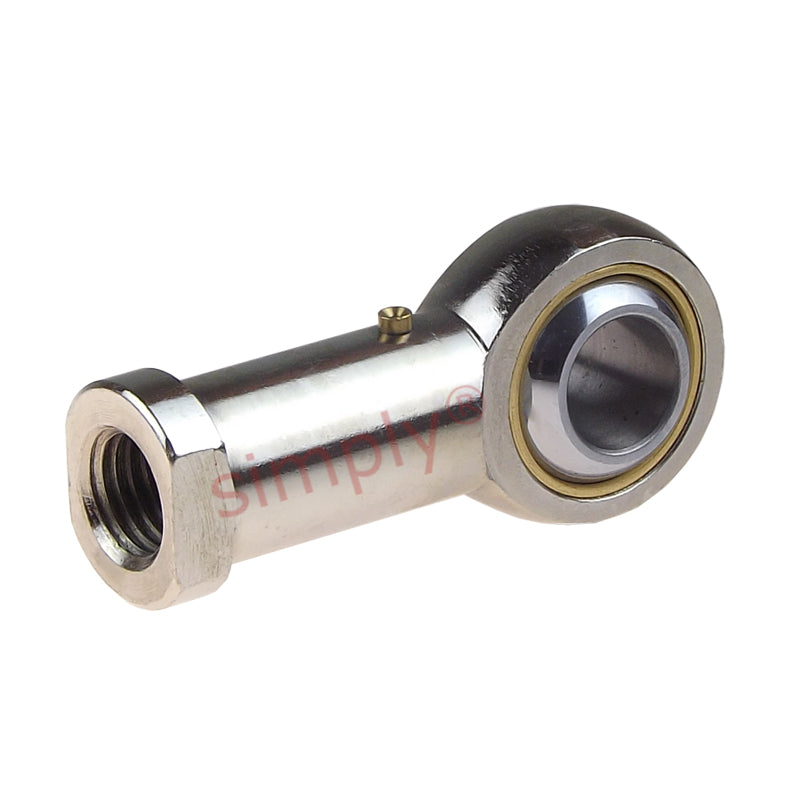

Fluro SIKAC6M Right Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
Fluro SIKAC6M Right Hand Steel / Bronze Lined Plain Female Rod End M6 Thread
Regular price
Rs. 1,577.19
Regular price
Sale price
Rs. 1,577.19
Taxes included.
In stock
Price Break
10+
Rs. 1,403.70
19+
Rs. 1,324.84
29+
Rs. 1,309.07
39+
Rs. 1,293.30
49+
Rs. 1,277.52
74+
Rs. 1,261.75
99+
Rs. 1,182.89
199+
Rs. 1,167.12
249+
Rs. 1,151.35
499+
Rs. 1,135.58
999+
Rs. 1,104.03
Description
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
- Brand / Quality:
- Fluro - High Quality
- Thread Size:
- M6
- Thread Direction:
- Right Hand
- Inside Diameter:
- 6mm
- Material:
- Bronze Lined
Technical
Technical
| Bore Size D | 6mm |
|---|---|
| B | 9mm |
| M | 6.75mm |
| A | 20mm |
| F | 30mm |
| L | 40mm |
| K | 13mm |
| J | 10mm |
| O | 8.9mm |
| SW | 11mm |
| Thread Size G | M6 |
| GL | 12mm |
| Static Load Co | 8.9kN |
| Dynamic Load | 4.3kN |
| Limiting Speed | 1500rev/min |
| Approx weight | 0.027kg |
