SKU: SFT7/8EC-RHP

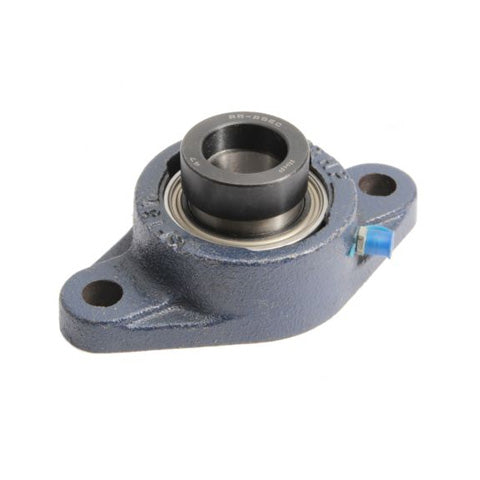

RHP SFT7/8EC Two Bolt Oval Cast Iron Flange Housing 7/8 inch Bore Insert
RHP SFT7/8EC Two Bolt Oval Cast Iron Flange Housing 7/8 inch Bore Insert
Regular price
Rs. 5,353.01
ex VAT
Regular price
Sale price
Rs. 5,353.01
ex VAT
In stock
Price Break
10+
Rs. 4,764.18
19+
Rs. 4,496.53
29+
Rs. 4,443.00
39+
Rs. 4,389.47
49+
Rs. 4,335.94
74+
Rs. 4,282.41
99+
Rs. 4,014.76
199+
Rs. 3,961.23
249+
Rs. 3,907.70
499+
Rs. 3,854.17
999+
Rs. 3,747.11
Couldn't load pickup availability
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SFT
- Bolt Hole Centres:
- 99.01mm = 3.898 inch
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 2.689 inch |
| H | 4.874 inch |
| J | 3.898 inch |
| G | 0.4375 inch |
| A | 1.126 inch |
| A2 | 1.67 inch |
| A4 | 0.437 inch |
| B2 | 1.217 inch |
| s1 | 0.298 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-7/8ECG+insonly">1225-7/8ECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
