• RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
1 1

SKU: SFT60DEC-RHP

RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert

RHP SFT60DEC Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
Rs. 20,178.60 ex VAT
Rs. 20,178.60 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 17,958.95
19+ Rs. 16,950.02
29+ Rs. 16,748.24
39+ Rs. 16,546.45
49+ Rs. 16,344.67
74+ Rs. 16,142.88
99+ Rs. 15,133.95
199+ Rs. 14,932.16
249+ Rs. 14,730.38
499+ Rs. 14,528.59
999+ Rs. 14,125.02
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

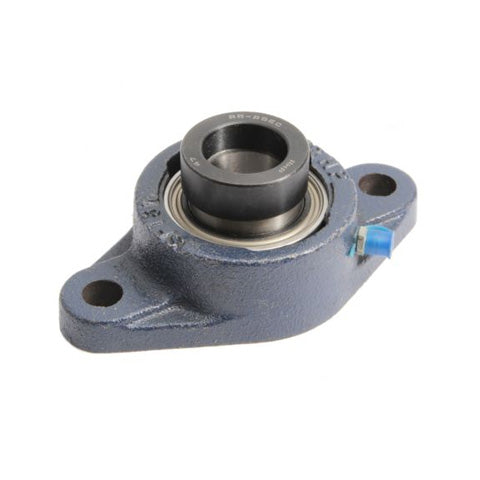

RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Style:
SFT
Bolt Hole Centres:
202mm
Technical
Bore 60mm
L 138.1mm
H 235mm
J 202mm
G 16mm
A 47.6mm
A3 80.77mm
A4 17.5mm
B3 77.82mm
s2 31.02mm
d2 84.12mm
Dynamic load Cr 48000 N
Static load Cor 33000 N
Rec max speed 2800 rpm
Weight 4.3 kg
Insert <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
