SKU: SFT60-RHP

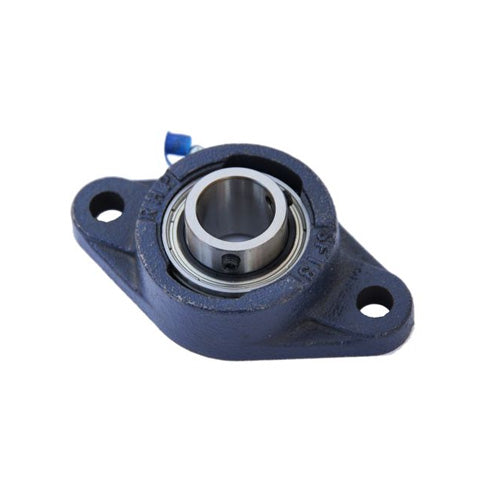

RHP SFT60 Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
RHP SFT60 Two Bolt Oval Cast Iron Flange Housing 60mm Bore Insert
Regular price
Rs. 15,938.74
ex VAT
Regular price
Sale price
Rs. 15,938.74
ex VAT
In stock
Price Break
10+
Rs. 14,185.48
19+
Rs. 13,388.54
29+
Rs. 13,229.15
39+
Rs. 13,069.77
49+
Rs. 12,910.38
74+
Rs. 12,750.99
99+
Rs. 11,954.06
199+
Rs. 11,794.67
249+
Rs. 11,635.28
499+
Rs. 11,475.89
999+
Rs. 11,157.12
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- SFT
- Bolt Hole Centres:
- 202mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 138.1mm |
| H | 235mm |
| J | 202mm |
| G | 16mm |
| A | 47.6mm |
| A1 | 73.69mm |
| A4 | 17.5mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
