SKU: SFT5/8EC-RHP

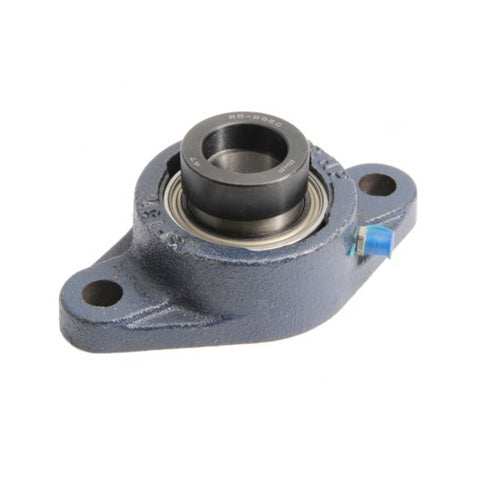

RHP SFT5/8EC Two Bolt Oval Cast Iron Flange Housing 5/8 inch Bore Insert
RHP SFT5/8EC Two Bolt Oval Cast Iron Flange Housing 5/8 inch Bore Insert
Regular price
Rs. 4,419.69
ex VAT
Regular price
Sale price
Rs. 4,419.69
ex VAT
In stock
Price Break
10+
Rs. 3,933.52
19+
Rs. 3,712.54
29+
Rs. 3,668.34
39+
Rs. 3,624.15
49+
Rs. 3,579.95
74+
Rs. 3,535.75
99+
Rs. 3,314.77
199+
Rs. 3,270.57
249+
Rs. 3,226.37
499+
Rs. 3,182.18
999+
Rs. 3,093.78
Couldn't load pickup availability
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Style:
- SFT
- Bolt Hole Centres:
- 76.505mm = 3.012 inch
Technical
Technical
| Bore | 5/8 inch |
|---|---|
| L | 2.067 inch |
| H | 3.878 inch |
| J | 3.012 inch |
| G | 0.375 inch |
| A | 0.969 inch |
| A2 | 1.536 inch |
| A4 | 0.374 inch |
| B2 | 1.124 inch |
| s1 | 0.258 inch |
| d2 | 1.125 inch |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1217-5/8ECG+insonly">1217-5/8ECG Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
