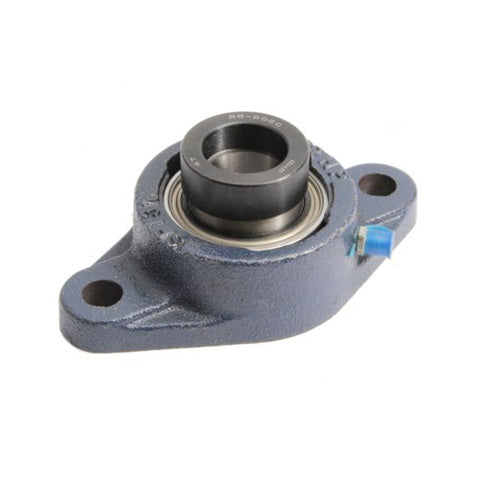

• RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
1 1

SKU: SFT45EC-RHP

RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert

RHP SFT45EC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Rs. 9,675.66
Rs. 9,675.66
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 8,611.34
19+ Rs. 8,127.55
29+ Rs. 8,030.80
39+ Rs. 7,934.04
49+ Rs. 7,837.28
74+ Rs. 7,740.53
99+ Rs. 7,256.75
199+ Rs. 7,159.99
249+ Rs. 7,063.23
499+ Rs. 6,966.48
999+ Rs. 6,772.96
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
SFT
Bolt Hole Centres:
148.5mm

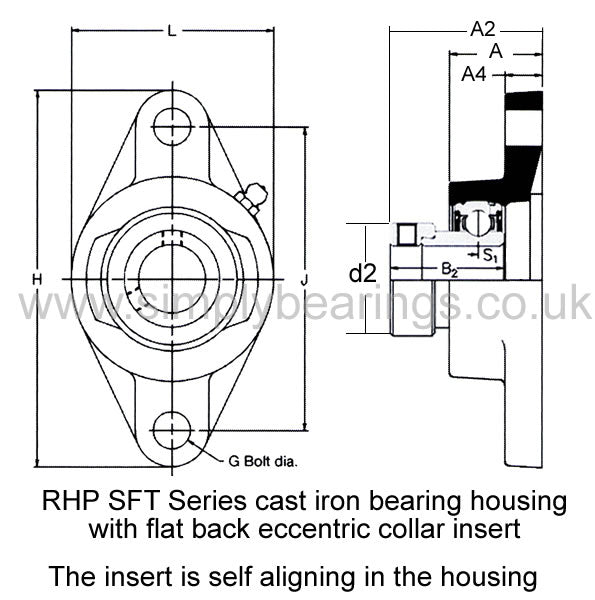

Technical
Bore 45mm
L 111.1mm
H 179.4mm
J 148.5mm
G 16mm
A 35.3mm
A2 56.62mm
A4 14.3mm
B2 43.64mm
s1 11.05mm
d2 63.5mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
