SKU: SFT45DEC-RHP

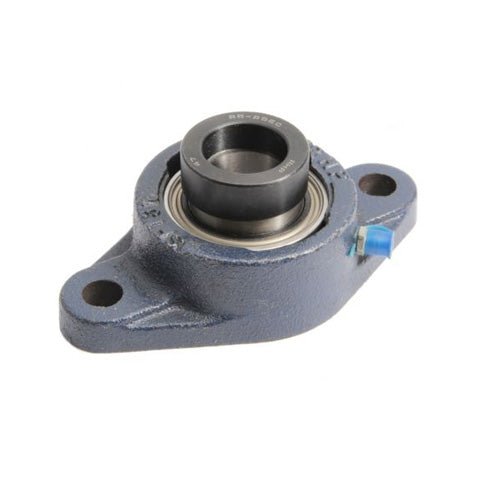

RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
RHP SFT45DEC Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Regular price
Rs. 10,899.79
ex VAT
Regular price
Sale price
Rs. 10,899.79
ex VAT
In stock
Price Break
10+
Rs. 9,700.81
19+
Rs. 9,155.82
29+
Rs. 9,046.83
39+
Rs. 8,937.83
49+
Rs. 8,828.83
74+
Rs. 8,719.83
99+
Rs. 8,174.84
199+
Rs. 8,065.84
249+
Rs. 7,956.85
499+
Rs. 7,847.85
999+
Rs. 7,629.85
Couldn't load pickup availability
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SFT
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.1mm |
| H | 179.4mm |
| J | 148.5mm |
| G | 16mm |
| A | 35.3mm |
| A3 | 58.9mm |
| A4 | 14.3mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
