SKU: SFT40A-RHP

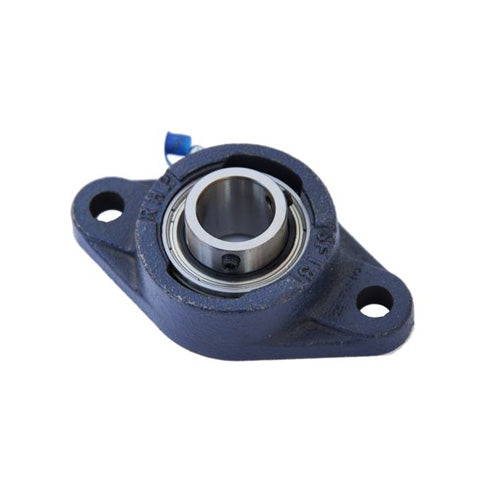

RHP SFT40A Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
RHP SFT40A Two Bolt Oval Cast Iron Flange Housing 40mm Bore Insert
Regular price
Rs. 7,020.85
ex VAT
Regular price
Sale price
Rs. 7,020.85
ex VAT
In stock
Price Break
10+
Rs. 6,248.56
19+
Rs. 5,897.51
29+
Rs. 5,827.31
39+
Rs. 5,757.10
49+
Rs. 5,686.89
74+
Rs. 5,616.68
99+
Rs. 5,265.64
199+
Rs. 5,195.43
249+
Rs. 5,125.22
499+
Rs. 5,055.01
999+
Rs. 4,914.60
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- SFT
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 101.6mm |
| H | 171.4mm |
| J | 143.5mm |
| G | 12mm |
| A | 34.9mm |
| A1 | 54.18mm |
| A4 | 12.7mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 52.7mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40AG+insonly">1240-40AG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
