SKU: SFT35EC-RHP

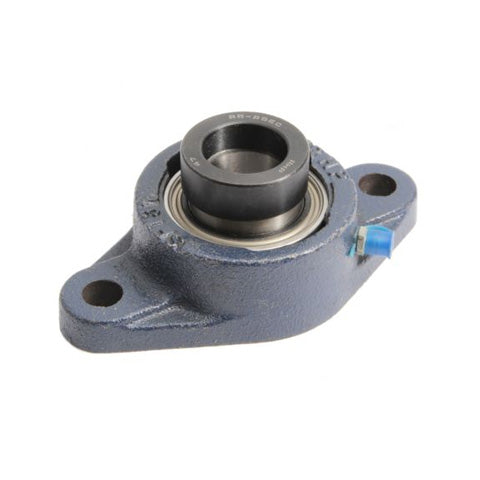

RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35EC Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
Rs. 6,851.15
ex VAT
Regular price
Sale price
Rs. 6,851.15
ex VAT
In stock
Price Break
10+
Rs. 6,097.52
19+
Rs. 5,754.97
29+
Rs. 5,686.45
39+
Rs. 5,617.94
49+
Rs. 5,549.43
74+
Rs. 5,480.92
99+
Rs. 5,138.36
199+
Rs. 5,069.85
249+
Rs. 5,001.34
499+
Rs. 4,932.83
999+
Rs. 4,795.81
Couldn't load pickup availability
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A2 | 50.34mm |
| A4 | 12.7mm |
| B2 | 38.88mm |
| s1 | 9.55mm |
| d2 | 55.58mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
