SKU: SFT35A-RHP

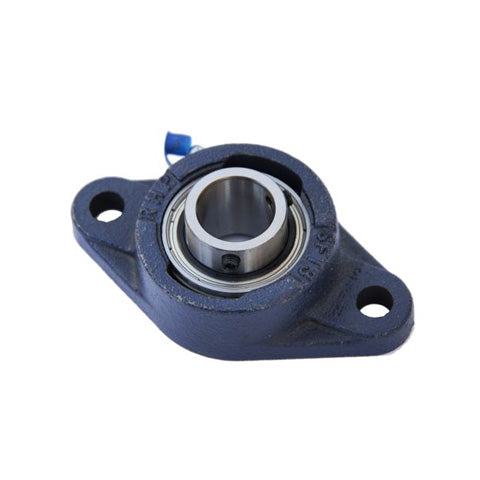

RHP SFT35A Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
RHP SFT35A Two Bolt Oval Cast Iron Flange Housing 35mm Bore Insert
Regular price
Rs. 6,708.05
ex VAT
Regular price
Sale price
Rs. 6,708.05
ex VAT
In stock
Price Break
10+
Rs. 5,970.16
19+
Rs. 5,634.76
29+
Rs. 5,567.68
39+
Rs. 5,500.60
49+
Rs. 5,433.52
74+
Rs. 5,366.44
99+
Rs. 5,031.04
199+
Rs. 4,963.96
249+
Rs. 4,896.88
499+
Rs. 4,829.80
999+
Rs. 4,695.64
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- SFT
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A1 | 46.41mm |
| A4 | 12.7mm |
| B1 | 34.9mm |
| s1 | 9.55mm |
| d1 | 46.69mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
