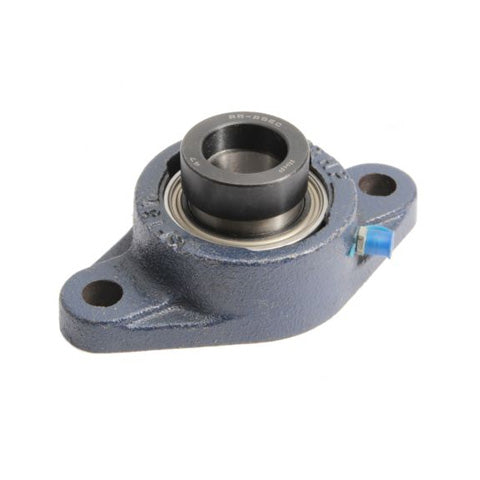

• RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
1 1

SKU: SFT25DEC-RHP

RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert

RHP SFT25DEC Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Rs. 5,641.75 ex VAT
Rs. 5,641.75 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 5,021.16
19+ Rs. 4,739.07
29+ Rs. 4,682.65
39+ Rs. 4,626.24
49+ Rs. 4,569.82
74+ Rs. 4,513.40
99+ Rs. 4,231.31
199+ Rs. 4,174.90
249+ Rs. 4,118.48
499+ Rs. 4,062.06
999+ Rs. 3,949.23
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
SFT
Bolt Hole Centres:
99mm
Technical
Bore 25mm
L 68.3mm
H 123.8mm
J 99mm
G 10mm
A 28.6mm
A3 45.95mm
A4 11.1mm
B3 44.4mm
s2 17.49mm
d2 38.1mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
