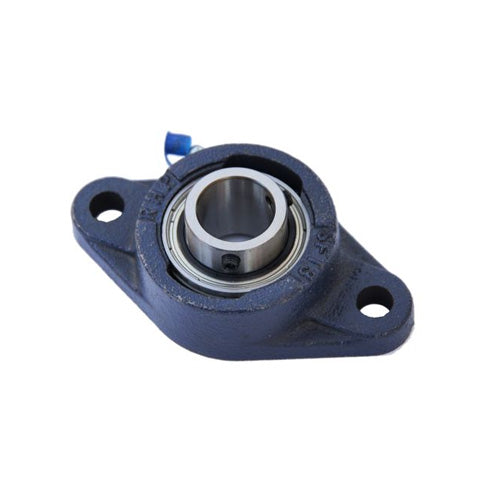

RHP SFT17 Two Bolt Oval Cast Iron Flange Housing 17mm Bore Insert
RHP SFT17 Two Bolt Oval Cast Iron Flange Housing 17mm Bore Insert
Regular price
Rs. 4,086.63
ex VAT
Regular price
Sale price
Rs. 4,086.63
ex VAT
In stock
Price Break
10+
Rs. 3,637.10
19+
Rs. 3,432.77
29+
Rs. 3,391.90
39+
Rs. 3,351.04
49+
Rs. 3,310.17
74+
Rs. 3,269.30
99+
Rs. 3,064.97
199+
Rs. 3,024.11
249+
Rs. 2,983.24
499+
Rs. 2,942.37
999+
Rs. 2,860.64
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 17mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 17mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A1 | 32.87mm |
| A4 | 9.5mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-17G+insonly">1017-17G Click Here</a> |
| Casting group | SFT1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
