SKU: SFT1.3/8DEC-RHP

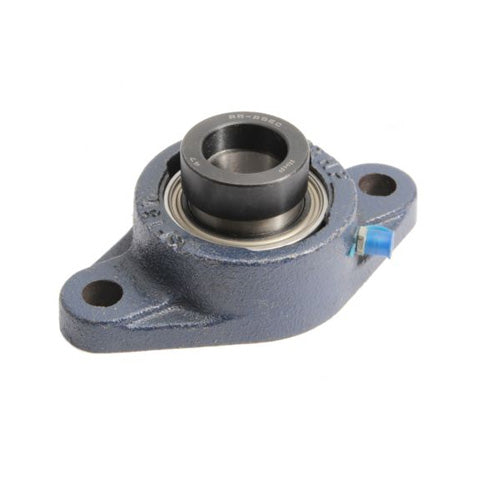

RHP SFT1-3/8DEC Two Bolt Oval Cast Iron Flange Housing 1-3/8 inch Bore Insert
RHP SFT1-3/8DEC Two Bolt Oval Cast Iron Flange Housing 1-3/8 inch Bore Insert
Regular price
Rs. 8,402.47
ex VAT
Regular price
Sale price
Rs. 8,402.47
ex VAT
In stock
Price Break
10+
Rs. 7,478.20
19+
Rs. 7,058.07
29+
Rs. 6,974.05
39+
Rs. 6,890.03
49+
Rs. 6,806.00
74+
Rs. 6,721.98
99+
Rs. 6,301.85
199+
Rs. 6,217.83
249+
Rs. 6,133.80
499+
Rs. 6,049.78
999+
Rs. 5,881.73
Couldn't load pickup availability
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- SFT
- Bolt Hole Centres:
- 129.997mm = 5.118 inch
Technical
Technical

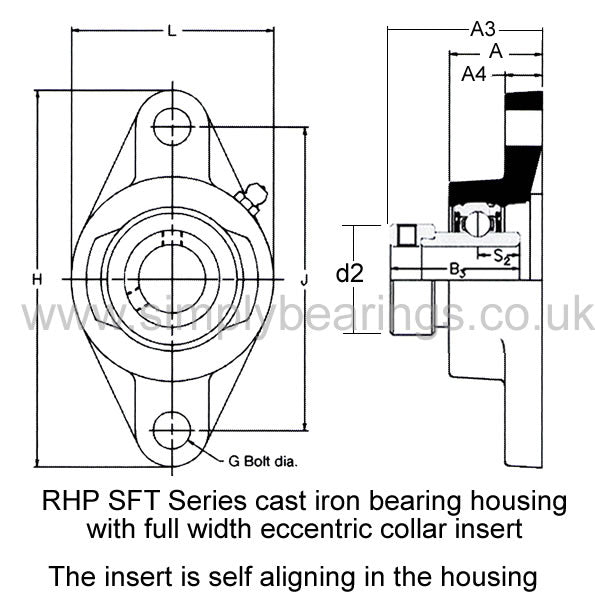

| Bore | 1-3/8 inch |
|---|---|
| L | 3.76 inch |
| H | 6.122 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 1.236 inch |
| A3 | 2.099 inch |
| A4 | 0.5 inch |
| B3 | 2.015 inch |
| s2 | 0.744 inch |
| d2 | 2.188 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-3/8DECG+insonly">1035-1-3/8DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
