SKU: SFT1.3/4EC-RHP

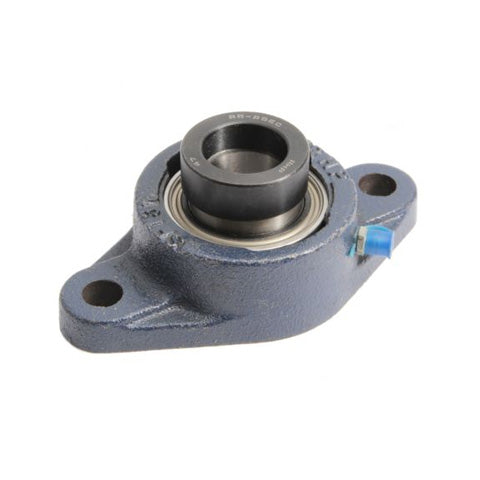

RHP SFT1-3/4EC Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert
RHP SFT1-3/4EC Two Bolt Oval Cast Iron Flange Housing 1-3/4 inch Bore Insert
Regular price
Rs. 10,452.75
ex VAT
Regular price
Sale price
Rs. 10,452.75
ex VAT
In stock
Price Break
10+
Rs. 9,302.95
19+
Rs. 8,780.31
29+
Rs. 8,675.78
39+
Rs. 8,571.26
49+
Rs. 8,466.73
74+
Rs. 8,362.20
99+
Rs. 7,839.56
199+
Rs. 7,735.04
249+
Rs. 7,630.51
499+
Rs. 7,525.98
999+
Rs. 7,316.93
Couldn't load pickup availability
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- SFT
- Bolt Hole Centres:
- 148.49mm = 5.846 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 4.374 inch |
| H | 7.063 inch |
| J | 5.846 inch |
| G | 0.625 inch |
| A | 1.39 inch |
| A2 | 2.229 inch |
| A4 | 0.563 inch |
| B2 | 1.718 inch |
| s1 | 0.435 inch |
| d2 | 2.5 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-1-3/4ECG+insonly">1245-1-3/4ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
