SKU: SFT1/2-RHP

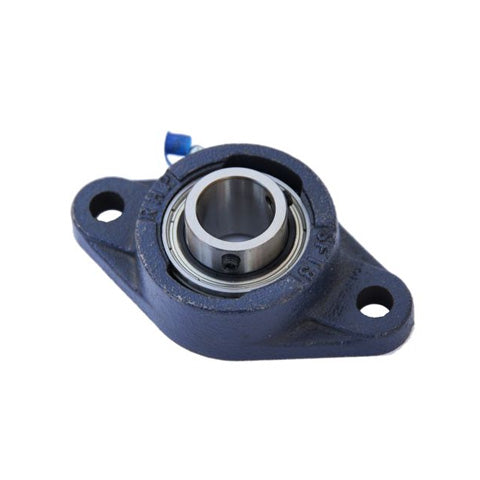

RHP SFT1/2 Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert
RHP SFT1/2 Two Bolt Oval Cast Iron Flange Housing 1/2 inch Bore Insert
Regular price
Rs. 4,337.37
ex VAT
Regular price
Sale price
Rs. 4,337.37
ex VAT
In stock
Price Break
10+
Rs. 3,860.26
19+
Rs. 3,643.39
29+
Rs. 3,600.02
39+
Rs. 3,556.64
49+
Rs. 3,513.27
74+
Rs. 3,469.90
99+
Rs. 3,253.03
199+
Rs. 3,209.65
249+
Rs. 3,166.28
499+
Rs. 3,122.91
999+
Rs. 3,036.16
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- SFT
- Bolt Hole Centres:
- 76.505mm = 3.012 inch
Technical
Technical
| Bore | 1/2 inch |
|---|---|
| L | 2.067 inch |
| H | 3.878 inch |
| J | 3.012 inch |
| G | 0.375 inch |
| A | 0.969 inch |
| A1 | 1.294 inch |
| A4 | 0.374 inch |
| B | 1.078 inch |
| s | 0.455 inch |
| d1 | 0.953 inch |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-1/2G+insonly">1017-1/2G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
