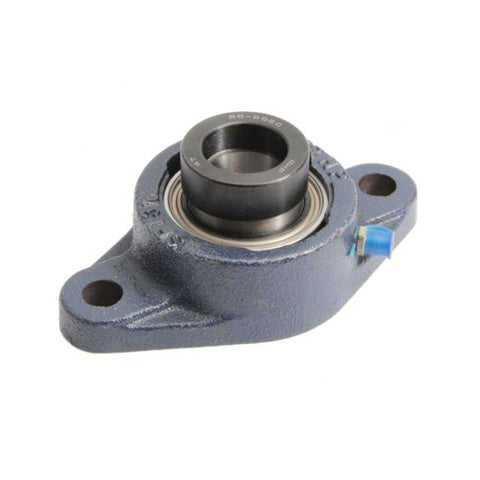

• RHP SFT1-15/16EC Two Bolt Oval Cast Iron Flange Housing 1-15/16 inch Bore Insert
1 1

SKU: SFT1.15/16EC-RHP

RHP SFT1-15/16EC Two Bolt Oval Cast Iron Flange Housing 1-15/16 inch Bore Insert

RHP SFT1-15/16EC Two Bolt Oval Cast Iron Flange Housing 1-15/16 inch Bore Insert
Rs. 11,681.15 ex VAT
Rs. 11,681.15 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 10,396.22
19+ Rs. 9,812.17
29+ Rs. 9,695.35
39+ Rs. 9,578.54
49+ Rs. 9,461.73
74+ Rs. 9,344.92
99+ Rs. 8,760.86
199+ Rs. 8,644.05
249+ Rs. 8,527.24
499+ Rs. 8,410.43
999+ Rs. 8,176.81
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
SFT
Bolt Hole Centres:
156.997mm = 6.181 inch
Technical
Bore 1-15/16 inch
L 4.563 inch
H 7.437 inch
J 6.181 inch
G 0.625 inch
A 1.563 inch
A2 2.386 inch
A4 0.563 inch
B2 1.718 inch
s1 0.435 inch
d2 2.75 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.5 kg
Insert <a href="advanced_search_result.php?keywords=1250-1-15/16ECG+insonly">1250-1-15/16ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
