SKU: SFT1.1/4-RHP

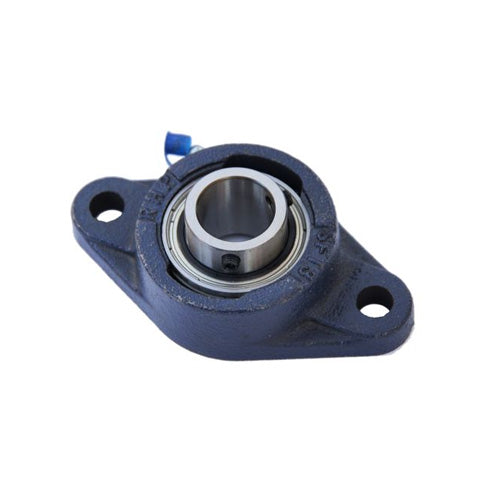

RHP SFT1-1/4 Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert
RHP SFT1-1/4 Two Bolt Oval Cast Iron Flange Housing 1-1/4 inch Bore Insert
Regular price
Rs. 7,049.97
ex VAT
Regular price
Sale price
Rs. 7,049.97
ex VAT
In stock
Price Break
10+
Rs. 6,274.47
19+
Rs. 5,921.97
29+
Rs. 5,851.48
39+
Rs. 5,780.98
49+
Rs. 5,710.48
74+
Rs. 5,639.98
99+
Rs. 5,287.48
199+
Rs. 5,216.98
249+
Rs. 5,146.48
499+
Rs. 5,075.98
999+
Rs. 4,934.98
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Style:
- SFT
- Bolt Hole Centres:
- 129.997mm = 5.118 inch

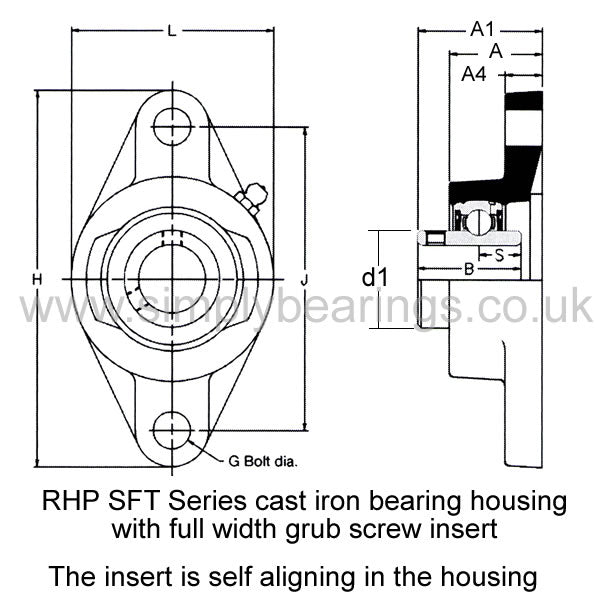

Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| L | 3.76 inch |
| H | 6.122 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 1.236 inch |
| A1 | 1.827 inch |
| A4 | 0.5 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-1/4G+insonly">1035-1-1/4G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
