SKU: SFT1.1/2DEC-RHP

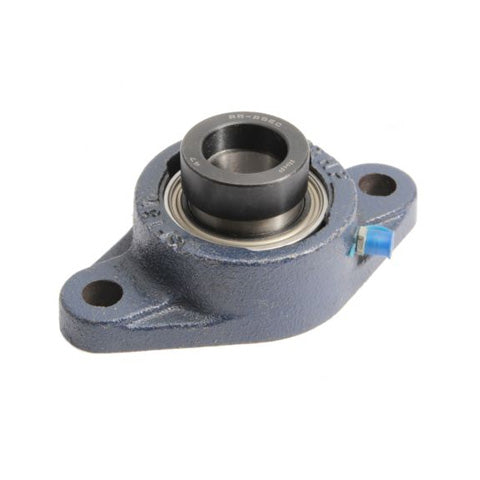

RHP SFT1-1/2DEC Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
RHP SFT1-1/2DEC Two Bolt Oval Cast Iron Flange Housing 1-1/2 inch Bore Insert
Regular price
Rs. 9,772.70
ex VAT
Regular price
Sale price
Rs. 9,772.70
ex VAT
In stock
Price Break
10+
Rs. 8,697.70
19+
Rs. 8,209.07
29+
Rs. 8,111.34
39+
Rs. 8,013.61
49+
Rs. 7,915.89
74+
Rs. 7,818.16
99+
Rs. 7,329.53
199+
Rs. 7,231.80
249+
Rs. 7,134.07
499+
Rs. 7,036.34
999+
Rs. 6,840.89
Couldn't load pickup availability
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- SFT
- Bolt Hole Centres:
- 143.51mm = 5.65 inch
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 4 inch |
| H | 6.748 inch |
| J | 5.65 inch |
| G | 0.5 inch |
| A | 1.374 inch |
| A3 | 2.319 inch |
| A4 | 0.5 inch |
| B3 | 2.218 inch |
| s2 | 0.845 inch |
| d2 | 2.374 inch |
| Dynamic load Cr | 32500 N |
| Static load Cor | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-1-1/2DECG+insonly">1040-1-1/2DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
