SKU: SF8-16M-EU

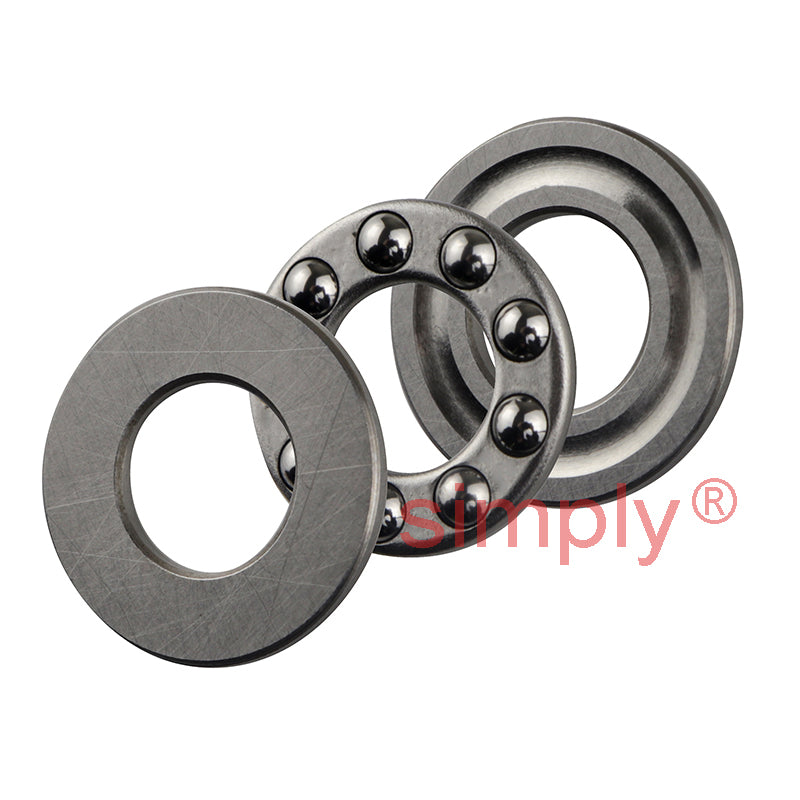

SF8-16M Budget Stainless Steel Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
SF8-16M Budget Stainless Steel Single Thrust Ball Bearing with Grooved Washers 8x16x5mm
Regular price
Rs. 765.55
Regular price
Sale price
Rs. 765.55
Taxes included.
In stock
Price Break
10+
Rs. 681.34
19+
Rs. 643.06
29+
Rs. 635.41
39+
Rs. 627.75
49+
Rs. 620.10
74+
Rs. 612.44
99+
Rs. 574.16
199+
Rs. 566.51
249+
Rs. 558.85
499+
Rs. 551.20
999+
Rs. 535.89
Description
Description
Stainless Steel Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 16mm
- Width:
- 5mm
Technical
Technical
| d | 8mm (+0/-0.05mm) |
|---|---|
| D | 16mm (+0.005/-0.020mm) |
| H | 5mm (+0/-0.075mm) |
| d1 | 8.2mm (+0/-0.011mm) |
| D1 | 15.8mm (+0/-0.008mm) |
| r1r2 min | 0.3mm |
| Dynamic load C | 3.844 kN |
| Static load Co | 4.894 kN |
| Limiting speed | 16000 rpm |
| Weight | 0.004 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
