SKU: SF3-RHP

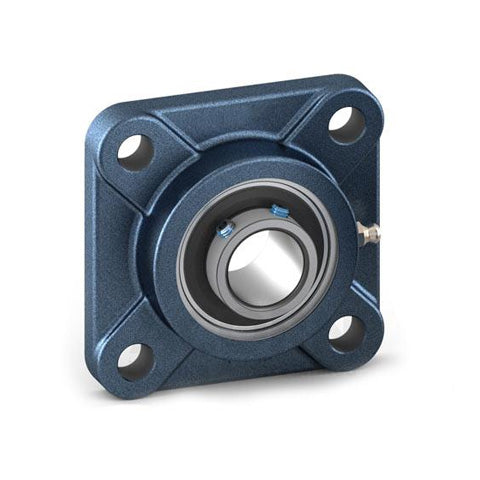

RHP SF3 Four Bolt Square Cast Iron Flange Housing and 3 inch Bore Grub Screw Full Width Insert
RHP SF3 Four Bolt Square Cast Iron Flange Housing and 3 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 36,489.65
ex VAT
Regular price
Sale price
Rs. 36,489.65
ex VAT
In stock
Price Break
10+
Rs. 32,475.79
19+
Rs. 30,651.31
29+
Rs. 30,286.41
39+
Rs. 29,921.51
49+
Rs. 29,556.62
74+
Rs. 29,191.72
99+
Rs. 27,367.24
199+
Rs. 27,002.34
249+
Rs. 26,637.44
499+
Rs. 26,272.55
999+
Rs. 25,542.76
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 76.2mm = 3 inch
- Style:
- SF
- Bolt Hole Centres:
- 152.4mm = 6 inch
Technical
Technical
| Bore | 3 inch |
|---|---|
| L | 7.736 inch |
| H | 6.24 inch |
| J | 6 inch |
| G | 0.75 inch |
| A | 2.02 |
| A1 | 3.185 inch |
| A4 | 0.906 inch |
| B | 3.062 |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static Load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-3G+insonly">1075-3G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
