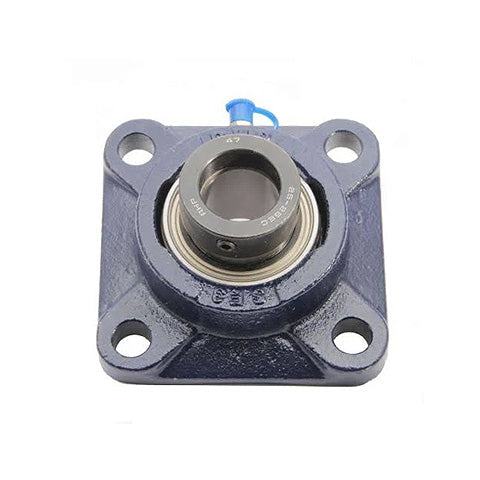

• RHP SF3/4DEC Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Eccentric Collar Full Width Insert
1 1

SKU: SF3/4DEC-RHP

RHP SF3/4DEC Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Eccentric Collar Full Width Insert

RHP SF3/4DEC Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Eccentric Collar Full Width Insert
Rs. 5,285.90 ex VAT
Rs. 5,285.90 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 4,704.45
19+ Rs. 4,440.16
29+ Rs. 4,387.30
39+ Rs. 4,334.44
49+ Rs. 4,281.58
74+ Rs. 4,228.72
99+ Rs. 3,964.43
199+ Rs. 3,911.57
249+ Rs. 3,858.71
499+ Rs. 3,805.85
999+ Rs. 3,700.13
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Style:
SF
Bolt Hole Centres:
63.5mm = 2.5 (2-1/2) inch
Technical
Bore 3/4 inch
L 3.374 inch
H 2.374 inch
J 2.5 inch
G 0.375 inch
A 1.094 inch
A3 1.793 inch
A4 0.437 inch
B3 1.717 inch
s2 0.674 inch
d2 1.311 inch
Dynamic load Cr 12800 N
Static Load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1020-3/4DECG+insonly">1020-3/4DECG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
