SKU: SF2.7/8-RHP

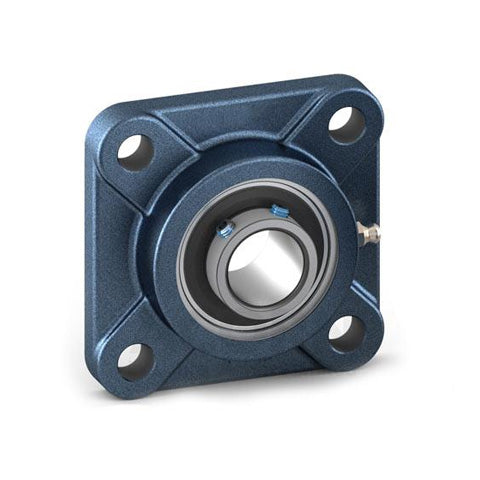

RHP SF2-7/8 Four Bolt Square Cast Iron Flange Housing and 2-7/8 inch Bore Grub Screw Full Width Insert
RHP SF2-7/8 Four Bolt Square Cast Iron Flange Housing and 2-7/8 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 31,791.36
ex VAT
Regular price
Sale price
Rs. 31,791.36
ex VAT
In stock
Price Break
10+
Rs. 28,294.31
19+
Rs. 26,704.74
29+
Rs. 26,386.83
39+
Rs. 26,068.92
49+
Rs. 25,751.00
74+
Rs. 25,433.09
99+
Rs. 23,843.52
199+
Rs. 23,525.61
249+
Rs. 23,207.69
499+
Rs. 22,889.78
999+
Rs. 22,253.95
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 73.03mm = 2.875 (2-7/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 152.4mm = 6 inch
Technical
Technical
| Bore | 2-7/8 inch |
|---|---|
| L | 7.736 inch |
| H | 6.24 inch |
| J | 6 inch |
| G | 0.75 inch |
| A | 2.02 |
| A1 | 3.185 inch |
| A4 | 0.906 inch |
| B | 3.062 |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static Load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 8.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-2-7/8G+insonly">1075-2-7/8G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
