SKU: SF2.3/8-RHP

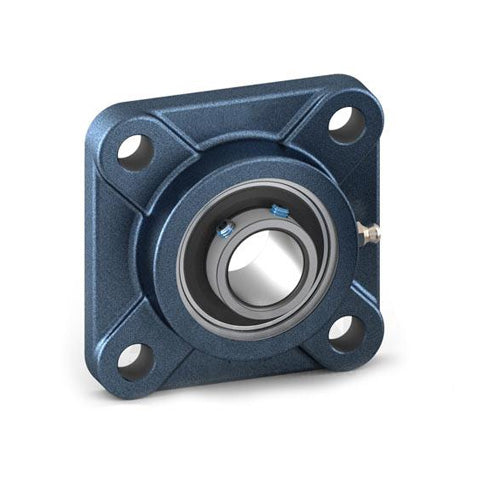

RHP SF2-3/8 Four Bolt Square Cast Iron Flange Housing and 2-3/8 inch Bore Grub Screw Full Width Insert
RHP SF2-3/8 Four Bolt Square Cast Iron Flange Housing and 2-3/8 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 16,907.52
ex VAT
Regular price
Sale price
Rs. 16,907.52
ex VAT
In stock
Price Break
10+
Rs. 15,047.69
19+
Rs. 14,202.32
29+
Rs. 14,033.24
39+
Rs. 13,864.17
49+
Rs. 13,695.09
74+
Rs. 13,526.02
99+
Rs. 12,680.64
199+
Rs. 12,511.56
249+
Rs. 12,342.49
499+
Rs. 12,173.41
999+
Rs. 11,835.26
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 143.002mm = 5.63 inch
Technical
Technical
| Bore | 2-3/8 inch |
|---|---|
| L | 6.87 inch |
| H | 5.437 inch |
| J | 5.63 inch |
| G | 0.625 inch |
| A | 1.874 |
| A1 | 2.901 inch |
| A4 | 0.689 inch |
| B | 2.562 |
| s | 1.002 inch |
| d1 | 2.966 inch |
| Dynamic load Cr | 48000 N |
| Static Load Cor | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-2-3/8G+insonly">1060-2-3/8G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
