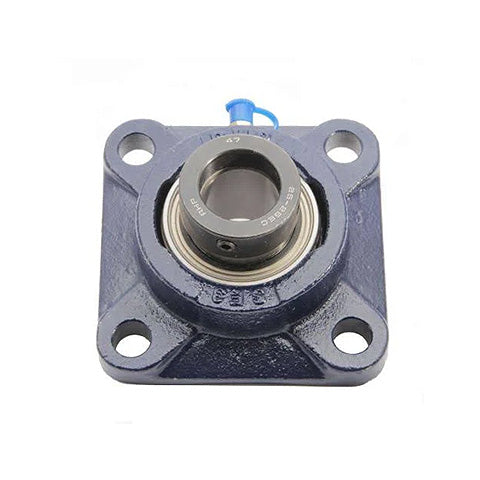

• RHP SF2-15/16DEC Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Eccentric Collar Full Width Insert
1 1

SKU: SF2.15/16DEC-RHP

RHP SF2-15/16DEC Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Eccentric Collar Full Width Insert

RHP SF2-15/16DEC Four Bolt Square Cast Iron Flange Housing and 2-15/16 inch Bore Eccentric Collar Full Width Insert
Rs. 40,272.35 ex VAT
Rs. 40,272.35 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 35,842.39
19+ Rs. 33,828.77
29+ Rs. 33,426.05
39+ Rs. 33,023.33
49+ Rs. 32,620.60
74+ Rs. 32,217.88
99+ Rs. 30,204.26
199+ Rs. 29,801.54
249+ Rs. 29,398.82
499+ Rs. 28,996.09
999+ Rs. 28,190.65
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SF DEC Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
74.61mm = 2.937 (2-15/16) inch
Style:
SF
Bolt Hole Centres:
152.4mm = 6 inch
Technical
Bore 2-15/16 inch
L 7.736 inch
H 6.24 inch
J 6 inch
G 0.75 inch
A 2.02 inch
A3 3.591 inch
A4 0.906 inch
B3 3.611 inch
s2 1.471 inch
d2 4 inch
Dynamic load Cr 66000 N
Static Load Cor 49500 N
Rec max speed 2300 rpm
Weight 8.6 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-15/16DECG+insonly">1075-2-15/16DECG Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
