SKU: SF2.1/8-RHP

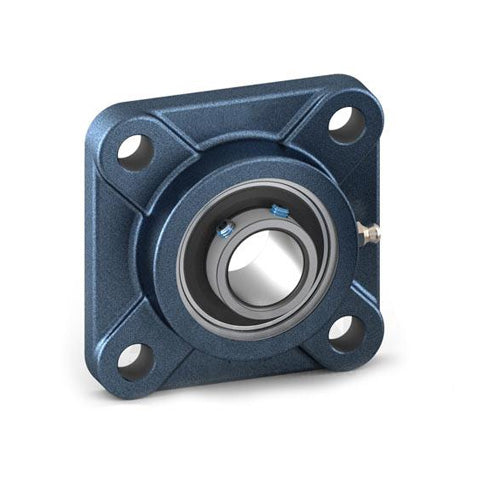

RHP SF2-1/8 Four Bolt Square Cast Iron Flange Housing and 2-1/8 inch Bore Grub Screw Full Width Insert
RHP SF2-1/8 Four Bolt Square Cast Iron Flange Housing and 2-1/8 inch Bore Grub Screw Full Width Insert
Regular price
Rs. 13,890.99
ex VAT
Regular price
Sale price
Rs. 13,890.99
ex VAT
In stock
Price Break
10+
Rs. 12,362.98
19+
Rs. 11,668.43
29+
Rs. 11,529.52
39+
Rs. 11,390.61
49+
Rs. 11,251.70
74+
Rs. 11,112.79
99+
Rs. 10,418.24
199+
Rs. 10,279.33
249+
Rs. 10,140.42
499+
Rs. 10,001.51
999+
Rs. 9,723.69
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Style:
- SF
- Bolt Hole Centres:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 2-1/8 inch |
|---|---|
| L | 6.374 inch |
| H | 5000 inch |
| J | 5.118 inch |
| G | 0.625 inch |
| A | 1.72 |
| A1 | 2.532 inch |
| A4 | 0.689 inch |
| B | 2.187 |
| s | 0.877 inch |
| d1 | 2.709 inch |
| Dynamic load Cr | 43500 N |
| Static Load Cor | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2-1/8G+insonly">1055-2-1/8G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
