SKU: SF1A-RHP

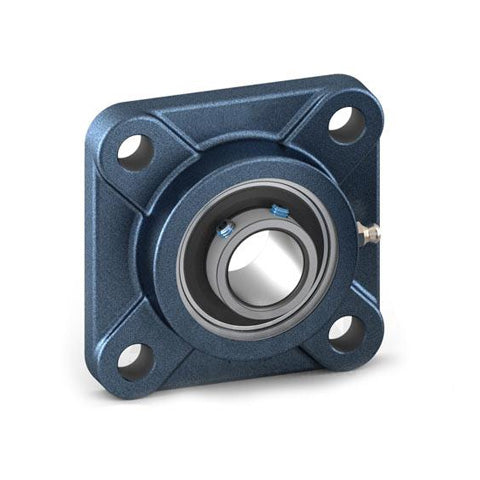

RHP SF1A Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Flat Back Insert
RHP SF1A Four Bolt Square Cast Iron Flange Housing and 1 inch Bore Grub Screw Flat Back Insert
Regular price
Rs. 5,209.91
ex VAT
Regular price
Sale price
Rs. 5,209.91
ex VAT
In stock
Price Break
10+
Rs. 4,636.82
19+
Rs. 4,376.32
29+
Rs. 4,324.23
39+
Rs. 4,272.13
49+
Rs. 4,220.03
74+
Rs. 4,167.93
99+
Rs. 3,907.43
199+
Rs. 3,855.33
249+
Rs. 3,803.23
499+
Rs. 3,751.14
999+
Rs. 3,646.94
Couldn't load pickup availability
Description
Description
|
RHP SF A Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SF
- Bolt Hole Centres:
- 70.002mm = 2.756 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 3.752 inch |
| H | 2.677 inch |
| J | 2.756 inch |
| G | 0.4375 inch |
| A | 1.126 |
| A1 | 1.529 inch |
| A4 | 0.437 inch |
| B1 | 1.077 inch |
| s1 | 0.298 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static Load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-1AG+insonly">1225-1AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
